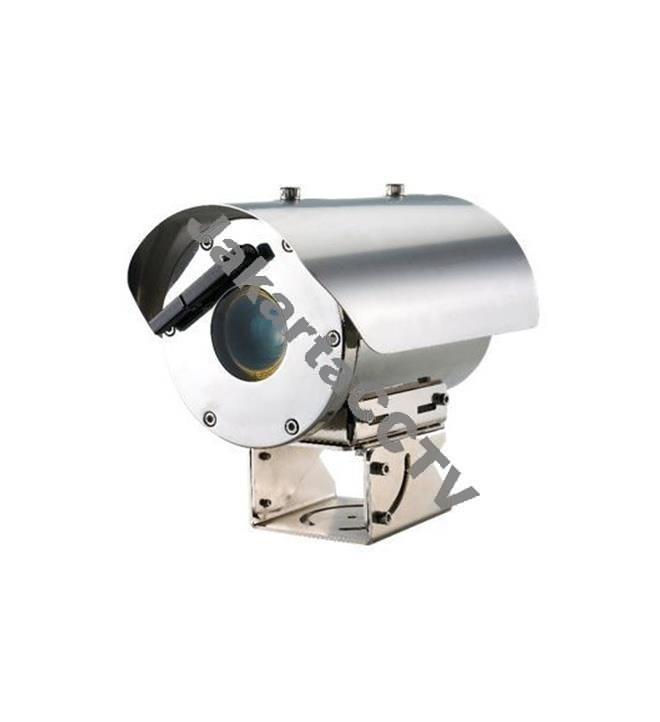

SAMSUNG TNO-6320E

tidak termasuk pengiriman

• Max. 2megapixel (1920 x 1080) resolution
• Max. 60fps@2M all resolutions
• 4.44 ~ 142.6mm (32x) optical zoom, 16x digital zoom
• 0.15Lux@F1.6(color), 0.015Lux@F1.6(B/W)
• H.264, MJPEG dual codec, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Face detection, Tampering, Virtual line support
• Explosion-proof certificate : CE2460 EX II 2 GD Ex d IIC T6 Gb IP67 Ex tb IIIC T85°C Db
• Stainless 316L, Built-in Wiper
• IP67, IK10

Qty:

Overview
Contact Us

Jual IP Camera murah, SAMSUNG HANWHA TECHWIN TNO-6320E CCTV, yang bisa anda beli sekarang dari JakartaCCTV dengan harga kompetitif dan terjangkau. IP Kamera HANWHA ini dilengkapi dengan lensa yang memiliki jarak fokus bervariasi antara 4.44-142.6 mm yang terlindungi dalam casing stainless steel anti air IP67 & anti pencurian / anti pengrusakan IK10. Selain menangkap gambar/video dengan resolusi hingga 2MP (pada 1080P HD), lensa ini juga mampu menzoom gambar/video hingga 32x. Pengguna dapat melaksanakan fungsi ini sambil menstreaming gambar/video tsb ke berbagai output.

Area outdoor merupakan tempat yang direkomendasikan untuk penempatan kamera ini karena kamera ini dapat bertahan dari ledakan hingga batas tertentu, mempunyai built-in wiper yang bisa digunakan untuk membersihkan kamera itu sendiri, memiliki banyak fitur cerdik seperti Filter IR Cut Day/Night yang dapat menampilkan image berwarna pada siang hari dan secara otomatis beralih ke image monochrome pada saat suasana berangsur gelap, Teknologi True WDR (Wide Dynamic Range) yang dapat menangkap gambar yang jelas pada kondisi dimana objek dikelilingi oleh cahaya belakang yang kuat/terang, sambil menjaga latar belakangnya agar dapat terlihat jelas, tampering detection yang dapat mendeteksi ketika kamera diganggu, virtual line detection yang bisa mendeteksi penyusupan / penerobosan melewati batas garis tertentu yang dispesifikasikan oleh pengguna, serta Face detection yang bisa mendeteksi dan mengenali wajah manusia.

FITUR & FUNGSI SAMSUNG TNO-6320E

Max. 2megapixel (1920 x 1080) resolution
Max. 60fps@2M all resolutions
4.44 ~ 142.6mm (32x) optical zoom, 16x digital zoom
0.15Lux@F1.6(color), 0.015Lux@F1.6(B/W)
H.264, MJPEG dual codec, Multiple streaming
Day & Night (ICR), WDR (120dB)
Face detection, Tampering, Virtual line support
Explosion-proof certificate : CE2460 EX II 2 GD Ex d IIC T6 Gb IP67 Ex tb IIIC T85°C Db
Stainless 316L, Built-in Wiper
IP67, IK10

Hubungi kami sekarang untuk mendapatkan penawaran terbaik dengan harga distributor yang murah untuk IP Cam HANWHA TNO-6320E ini yang disertai dengan garansi resmi 2 tahun dari distributor HANWHA TECHWIN di Indonesia. Kami, JakartaCCTV akan dengan senang hati membimbing dan membantu anda memilih IP Kamera SAMSUNG atau paket CCTV lainnya yang paling cocok untuk kebutuhan anda serta memberikan penawaran untuk jasa pasang CCTV & proses settingnya.

VIDEO
Imaging Device	1/2.8" 2.38M CMOS
Total Pixels	1,952(H) x 1,116(V), 2.18M pixels
Effective Pixels	1,944(H) x 1,104(V), 2.14M pixels
Scanning System	Progressive
Min. Illumination	Color : 0.3Lux (1/30sec, F1.6, 50IRE, AGC high) , 0.005Lux (2sec, F1.6, 50IRE, AGC high) B/W : 0.03Lux (1/30sec, F1.6, 50IRE, AGC high), 0.0005Lux (2sec, F1.6, 50IRE, AGC high) Color : 0.15Lux (1/30sec, F1.6, 30IRE), 0.0025Lux (2sec, F1.6, 30IRE) B/W : 0.015Lux (1/30sec, F1.6, 30IRE), 0.00025Lux (2sec, F1.6, 30IRE)
S / N Ratio	50dB
LENS
Focal Length (Zoom Ratio)	4.44 ~ 142.6mm (Optical 32x)
Max. Aperture Ratio	F1.6(Wide) / F4.4(Tele)
Angular Field of View	H : 62.8°(Wide) ~ 2.23°(Tele) / V : 36.8°(Wide) ~ 1.26°(Tele)
Min. Object Distance	Wide : 1.5m (4.92ft), Tele : 1.5m (4.92ft)
Focus Control	Auto / Manual / One push
Lens / Mount Type	DC auto iris / Board-in type
OPERATIONAL
Camera Title	Off / On (Displayed up to 45 characters)
Day & Night	Auto (ICR) / Color / B/W
Backlight Compensation	Off / BLC
Wide Dynamic Range	120dB
Contrast Enhancement	SSDR (Off / On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
Defog	Off / Auto / Manual
Motion Detection	Off / On (4ea rectangular zones)
Privacy Masking	Off / On (32 zones of rectangle zone) with zoom threshold mosaic option
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor / Mercury
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital Zoom	16x
Flip / Mirror	Off / On
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis)Appear, Face detection
Alarm I/O	Input 1ea / Output 1ea (Relay)
Alarm Triggers	Motion detection, Tampering, Face detection, Video analytics, Alarm input, Network disconnection
Alarm Events	File upload via FTP and E-Mail, Notification via E-Mail, TCP and HTTP NAS recording at alarm triggers, External output
NETWORK
Ethernet	RJ-45 (10/100BASE-T )
Video Compression Format	H.264 (MPEG-4 part 10 / AVC), MJPEG
Resolution	1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 800 x 450, 704 x 576 640 x 360, 528 x 384 352 x 288 320 x 180
Max. Framerate	H.264 : Max. 60fps at all resolutions MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps
Smart Codec	Manual mode (Area-based : 5ea), Face detection mode
Video Quality Adjustment	H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method	H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	10 users at unicast mode
Edge Storage	NAS (Network Attached Storage)
Application Programming Interface	ONVIF profile S, SUNAPI (HTTP API), SVNP 1.2, Wisenet Open Platform
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
Web Viewer	Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 25), Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software	SmartViewer, SSM
ENVIRONMENTAL
operating Temperature / Humidity	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -30°C (-22°F)
Storage Temperature / Humidity	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection	IP67
Vandal Resistance	IK10
Explosion Certification	CE2460 EX II 2 GD Ex d IIC T6 Gb IP67 Ex tb IIIC T85°C Db
ELECTRICAL
Input Voltage / Current	24V AC
Power Consumption	24V AC : Max. 28W (24V AC heater on)
MECHANICAL
Color / Material	Metalic silver / Stainless 316L
Dimensions (WxHxD)	Ø162.0 x 244.0mm (Ø6.38" x 9.61")
Weight	7Kg (15.43 lb)
