Brand: Samsung Wisenet

Samsung SNO-7084R

Telp untuk Harga

•Max 2M (1920 x 1080), Full HD(1080p) resolution
•60fps @ 1920 x 1080
•Min.Illumination 0Lux (IR Distance 30m)
•Enhanced WDR (100dB)/ 30fps @2MP WDR
•Built-in 3~ 8.5mm(2.8x) Motorized Varifocal lens
•H.264 & MJPEG dual codec
•Multi-crop streaming
•Face/Motion/Audio Detection
• UPnP (Auto Port Forwarding)
•Simple Focus, Defog, DIS support
•Day & Night(ICR), SD/SDHC/SDXC Memory slot
•IP66, IK10 Grade
•PoE supports

Qty:

Overview
Specifications
Contact Us

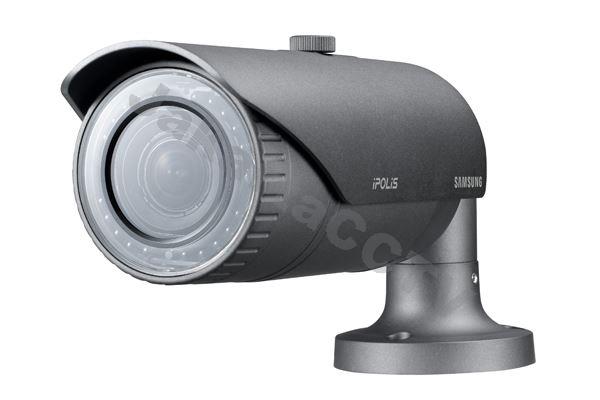

SAMSUNG SNO-7084R Bullet IP Camera

Jual CCTV SAMSUNG SNO-7084R Bullet IP Camera.SAMSUNG SNO-7084R merupakan kamera pengawas yang dapat dipantau dari jarak jauh yang diproduksi oleh brand ternama SAMSUNG. Kamera ini telah dilengkapi dengan teknologi terbaru dari SAMSUNG Techwin WiseNetIII, teknologi ini memiliki fungsi tampilan yang paling canggih dari SAMSUNG dengan kamera 3 Megapixel menghasilkan gambar berdefinisi tinggi 1080P. Kamera kualitas tinggi dengan fungsinya yang termasuk 120dB Wide Dynamic Range yang memberikan 30fps pada 3 Megapiksel1080p, built-in LED IR dan lensa varifocal bermesin yang mengakibatkan kontrol fokus yang mudah. IP66menjamin perlindungan terhadap debu / air serta dengan sunshield terpadu dan disediakan dengan mounting bracket yang memungkinkan kamera untuk dipasang dengan baik dinding, permukaan atau langit-langit untuk memastikan kelapang jarak pandang yang dapat diperoleh. SAMSUNG SNO-7084R dirancang khusus untuk menangani solusi pengawasan yang canggih.

Bullet IP kamera SAMSUNG SNO-7084R merupakan kamera CCTV yang dirancang khusus untuk performa kinerja tinggi dengan kualitas gambar yang luar biasa. SAMSUNG SNO-7084R memiliki berbagai fitur yang sangat optimal dan sangat powerfull.SAMSUNG SNO-7084R merupakan solusi sempurna untuk video kamera pengawas yang efektif serta berkualitas tinggi dengan harga yang terjangkau dan relatif murah. Kamera SAMSUNG SNO-7084R ini memberikan hasil tampilan dengan kualitas yang lebih jernih jelas dan tajam.SNO-7084R akan memenuhi berbagai kebutuhan pengawasan keamanan. JakartaCCTV jual kamera CCTV Bullet IP kamera SAMSUNG SNO-7084R dengan harga distributor di Jakarta.

Fitur SAMSUNG SNO-7084R

30fps @ 2.048 x 1.536 / 60fps @ 1.920 x 1.080.
Fokus sederhana (Bermotor VF).
Day & Night (ICR), Enhanced DIS, Defog.
3M real-time WDR (Max. 120dB).
Warna: 0.1Lux (F1.2, 50IRE); B / W: 0Lux (IR LED).
Built-in slot memori SD / SDHC / SDXC.
Multi-crop streaming.
IP66 / IK10.

JakartaCCTV adalah distributor kamera CCTV dan IP Camera terbesar di Indonesia. Dengan kelengkapan produk kamera CCTV dan IP Kamera yang dimiliki, JakartaCCTV dapat memberikan solusi terbaik bagi kebutuhan keamanan anda. Pantau keadaan rumah, kantor, gudang, took maupun pabrik. Jual SAMSUNG ip camera, cctv outdoor, cctv indoor, IP camera, infrared camera dan banyak lainnya. Apabila Anda menginginkan CCTV dengan penawaran terbaik, dengan harga CCTV kamera murah, Anda dapat menghubungi JakartaCCTV, JakartaCCTV jual CCTV kamera murah di Jakarta. Kami jual CCTV dari berbagai brand atau merek ternama dengan fitur dan spesifikasi yang terbaru serta terlengkap. JakartaCCTV menyediakan jasa pemasangan CCTV yang dikerjakan langsung oleh teknisi–teknisi yang handal, berpengalaman dan profesional.

Spesifikasi produk

Imaging Device	1/2.8" 3.2M CMOS
Total Pixels	2.065(H)x1.565(V)
Effective Pixels	2.065(H)x1.553(V)
Min.Illumination	Color : 0.1Lux (F1.2, 50IRE), 0.06Lux (F1.2, 30IRE), 0.0017Lux (2sec, F1.2, 30IRE) B/W : 0Lux (F1.2, 50IRE), 0Lux (F1.2, 30IRE), 0Lux (2sec, F1.2, 50IRE)
S/N RATIO	50dB
Video Output	CVBS : 1.0 Vpp / 75 Ω composite, 720 x 480(N), 720 x 576(P), for installation DIP connector type
Focal Lenght (Zoom Ratio)	3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio	F1.2
Angular Field of View	H : 100.12°(Wide) ~ 35.38°(Tele) / V : 73.76°(Wide) ~ 26.58°(Tele)
Min. Object Distance	0.5m (1.64ft)
Focus Control	Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
Lens Type	DC auto iris, P-Iris
Mount Type	Board type
IR LED	20ea
Viewable Length	30m (98.43ft)
Camera Title	Off / On (Displayed up to 45 characters)
Day/Night	Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC / WDR
Wide Dynamic Range	120dB
Contrast Enhancement	SSDR (Off / On)
Noise Reduction	SSNR III (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
Defog	Off / Auto / Manual
Motion Detection	Off / On (4 zones with 4-sided polygon)
Privasi masking	Off / On (32 zones with 4-sided polygon)
Gain Control	Off / On (32 zones with 4-sided polygon)
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter	Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec)
Flip / Mirror	Off / On
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection with metadata
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Motion detection, Tampering, Audio detection, Face detection, Network disconnection, Video analytics, Alarm input
Alarm Events	File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at Event, External output
Ethernet	RJ-45 (10/100BASE-T)
Video Compression	H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution	2048 x 1536, 1920 x 1080P (Full HD), 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720P (HD), 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate	H.264 : Max. 30fps@2048 x 1536, 1600 x 1200, Max 60fps@the other resolutions MJPEG : Max. 10fps@2048 x 1536 Max. 15fps@1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 Max. 30fps@800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Smart Codec	Manual mode (Area-based : 5ea), Face detection mode
Video Quality Adjustment	H.264 : Compression level, Target bitrate level control MJPEG : Quality level control
Bitrate Control	H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
Audio Input	Selectable (Mic in / Line in / Built-in mic), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Output	Line out (3.5mm mono jack), Max output level : 1 Vrms
Audio Compression	G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Bi-directional audio
IP	IPv4, IPv6
Protocol Support	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	15 users at unicast mode
Edge Storage	micro SD/SDHC/SDXC (4GB included) Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded NAS (Network Attached Storage)
Application Programming Interface	ONVIF profile S, HTTP API (SUNAPI) 2.0, SVNP 1.2
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer	Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 Supported Browser : Microsoft Internet Explorer (Ver. 11 ~ 8) Mozilla Firefox (Ver. 19 ~9) * Windows only Google Chrome (Ver. 25 ~ 15) * Windows only Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software	SmartViewer, SSM
Operating Temperature / Humidity	24V AC : -50°C ~ +55°C (-58°F ~ +131°F) / Less than 90% RH 12V DC, PoE : -20°C ~ +55°C (-4°F ~ +131°F) / Less than 90% RH *Start up should be done at above -10°C (+14°F)
Storage Temperature	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection	IP66
Vandal Resistance	IK10
Input Voltage / Current	24V AC, 12V DC, PoE (IEEE802.3af class3)
Power Consumption (±10%)	Max. 11.5W (12V DC), Max. 12.5W (PoE), Max. 13.0W / 19.0W (24V AC, Heater off / on) * Heater works at AC power input only
Color / Material	Dark gray / Aluminium
Dimensions (mm)	82.4 x 82.4 x 312.6mm (3.24" x 3.24" x 12.31") (Without sunshield)
Weight	1.19Kg (2.62 lb)
