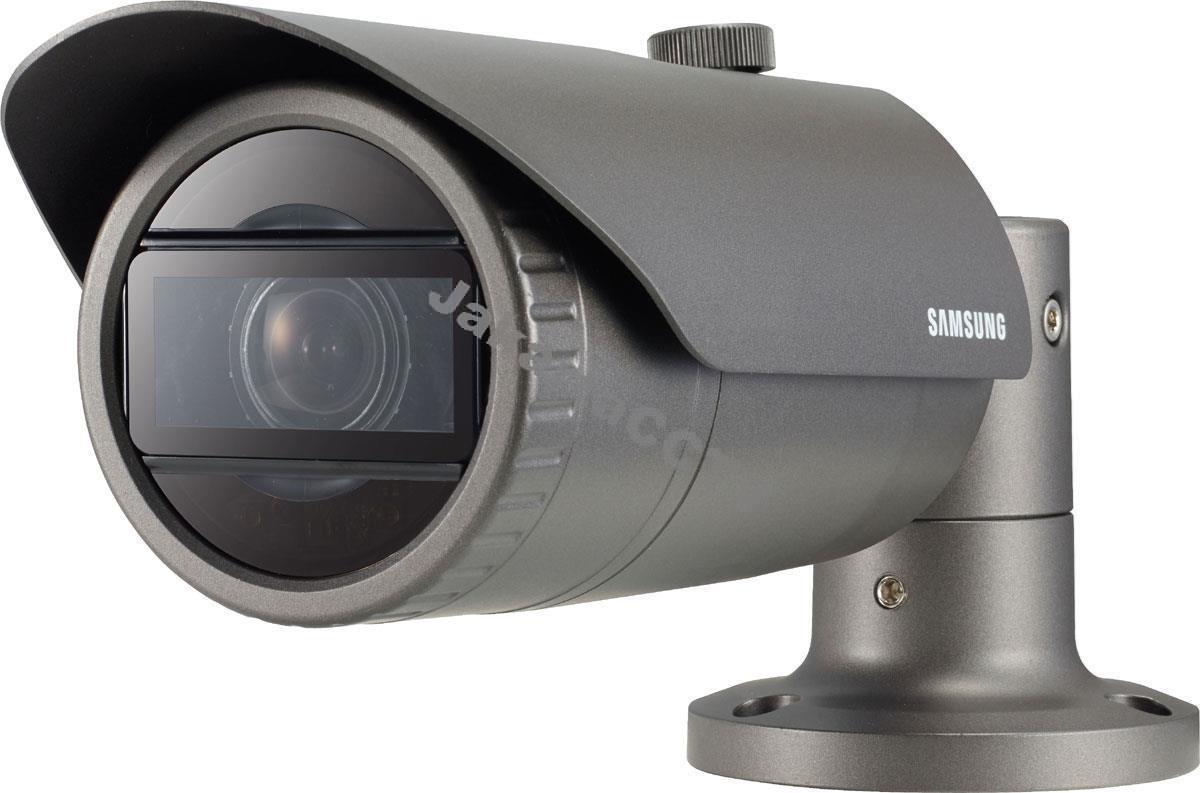

SAMSUNG QNO-7080RP

tidak termasuk pengiriman

• Max. 4MP resolution
• 2.8 ~ 12mm (4.3x) motorized varifocal lens
• Max. 20fps@4M, Max.30fps@2M all resolutions
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Motion detection, Tampering, Defocus detection
• micro SD (128GB) memory slot, PoE / 12V DC
• IR viewable length 30m, IP66, IK10
• Hallway view support
• LDC support (Lens Distortion Correction)

Qty:

Overview
Contact Us

Jual IP Camera murah, SAMSUNG HANWHA TECHWIN QNO-7080RP CCTV, yang bisa anda beli sekarang dari JakartaCCTV dengan harga kompetitif dan terjangkau. IP Kamera bullet IR HANWHA ini dilengkapi dengan lensa motorized vari-focal 2.8-12 mm yang mampu menyesuaikan bukaan lensa kamera secara otomatis ketika sedang beroperasi, sehingga menghasilkan fleksibilitas pada area pandang kamera sekuriti, serta mampu menangkap gambar & video dengan resolusi hingga 4MP, dan menstreamingnya pada berbagai output. Lensa ini dilindungi dalam casing weatherproof IP66 and anti maling IK10 yang dikombinasikan dengan IR LED yang sanggup memantau sinar infra merah yang dipancarkan oleh objek dalam kegelapan total hingga jarak 30m di sekitar kamera.

Kamera ini cocok untuk penempatan di area outdoor karena diperlengkapi dengan Filter IR Cut Day/Night yang dapat menampilkan image berwarna pada siang hari dan beralih ke image monochrome pada saat suasana berangsur gelap, teknologi True WDR yang digunakan untuk menangkap gambar yang jelas pada kondisi dimana objek dikelilingi oleh cahaya belakang yang kuat/terang, sambil menjaga latar belakangnya agar dapat terlihat jelas, tampering detection yang dapat mendeteksi ketika kamera diganggu, motion detection yang dapat mendeteksi dan merekam pergerakan yang tidak biasanya, defocus detection yang dapat mendeteksi ketika kamera sedang kehilangan fokus serta berbagai fitur cerdik lainnya.

Di samping itu kamera ini juga mendukung Lens Distortion Correction yang dapat memperbaiki distorsi yang disebabkan oleh lensa kamera, hallway view mode yang dapat mengganti aspek rasio untuk pemantauan lebih optimal pada area vertikal seperti koridor, terowongan dsb., PoE (Power Over Ethernet), dan penyimpanan on board melalui Micro SD Slot 128GB.

FITUR & FUNGSI SAMSUNG QNO-7080RP

Max. 4MP resolution
2.8 ~ 12mm (4.3x) motorized varifocal lens
Max. 20fps@4M, Max.30fps@2M all resolutions
H.265, H.264, MJPEG codec supported, Multiple streaming
Day & Night (ICR), WDR (120dB)
Motion detection, Tampering, Defocus detection
micro SD (128GB) memory slot, PoE / 12V DC
IR viewable length 30m, IP66, IK10
Hallway view support
LDC support (Lens Distortion Correction)

Hubungi kami sekarang untuk mendapatkan penawaran terbaik dengan harga distributor yang murah untuk IP Cam HANWHA QNO-7080RP ini yang disertai dengan garansi resmi 2 tahun dari distributor HANWHA TECHWIN di Indonesia. Kami, JakartaCCTV akan dengan senang hati membimbing dan membantu anda memilih IP Kamera SAMSUNG atau paket CCTV lainnya yang paling cocok untuk kebutuhan anda serta memberikan penawaran untuk jasa pasang CCTV & proses settingnya.

VIDEO
Imaging Device	1/3" 4M CMOS
Total Pixels	2,720(H) x 1,536(V)
Effective Pixels	2,688(H) x 1,520(V)
Scanning System	Progressive
Min. Illumination	Color : 0.15Lux (30IRE), B/W : 0Lux (IR LED on)
LENS
Focal Length (Zoom Ratio)	2.8 ~ 12mm (4.3x) motorized varifocal
Max. Aperture Ratio	F1.4
Angular Field of View	H : 109.7° ~ 26.0° / V : 60.8° ~ 15.2° / D : 131.3° ~ 30.1°
Min. Object Distance	0.5m (1.64ft)
Focus Control	Simple focus (Motorized V/F) / Manual, Remote control via network
Lens Type	DC auto iris
Mount Type	Board type
OPERATIONAL
IR Viewable Length	30m (98.43ft)
Camera Title	Off / On (Displayed up to 20 characters per line) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night	True Day & Night
Backlight Compensation	Off / BLC / WDR
Wide Dynamic Range	120dB
Digital Noise Reduction	SSNR (Off / On)
Motion Detection	Off / On (4ea polygonal zones)
Privacy Masking	Off / On (6ea rectangular zones)
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens Distortion Correction)	Off / On (5 levels with min / max)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker
Flip / Mirror	Flip / Mirror / Hallway view
Intelligent Video Analytics	Motion detection with metadata, Tampering, Defocus detection
Alarm I/O	Input 1 / Output 1
Alarm Triggers	Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection
Alarm Events	File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
Pixel Counter	Support (Plug-in viewer only)
NETWORK
Ethernet	RJ-45 (10/100BASE-T )
Video Compression Format	H.265, H.264, MJPEG
Resolution	2592 x 1520, 2560 x1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265/H.264 : Max. 20fps at 4M, Max. 30fps at 2M all resolutions, MJPEG : Max. 15fps
Smart Codec	WiseStream
Video Quality Adjustment	H.265/H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method	H.265/H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 3 profiles)
Audio I/O	Line in
Audio Compression Format	G.711 u-law / G.726 selectable G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Uni-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	6 users at unicast mode
Edge Storage	micro SD/SDHC/SDXC max. 128G, NAS - Motion images recorded in the SD memory card can be downloaded - Manual recording at local PC
Application Programming Interface	ONVIF Profile S/G, SUNAPI (HTTP API)
Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungary, Greek
Web Viewer	Supported OS : Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11 Plug-in free Webviewer - Supported Browser : Google Chrome 47, MS Edge 20 Plug-in Webviewer - Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
Central Management Software	SmartViewer
ENVIRONMENTAL
operating Temperature / Humidity	-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C (-4°F)
Storage Temperature / Humidity	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection	IP66
Vandal Resistance	IK10
ELECTRICAL
Input Voltage / Current	PoE (IEEE802.3af, Class3) / 12V DC
Power Consumption	Max. 8W (PoE), Max. 7W (12V DC)
MECHANICAL
Color / Material	Dark gray / Metal
Dimensions (WxHxD)	Ø70.0 x 246.0mm (Ø2.76" x 9.69") (Without sunshield)
Weight	750g (1.65 lb)
