Produk sesudahnyaCP Plus CP-UAP-SY23CL10-EH

Brand: CP Plus

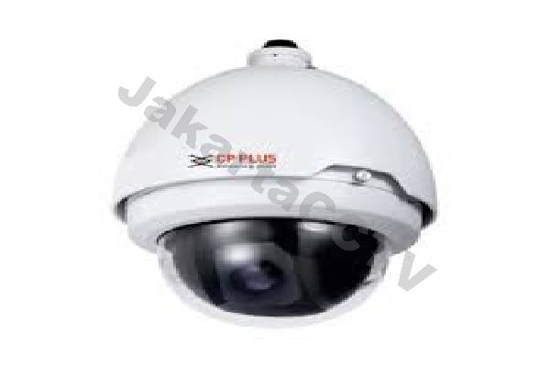

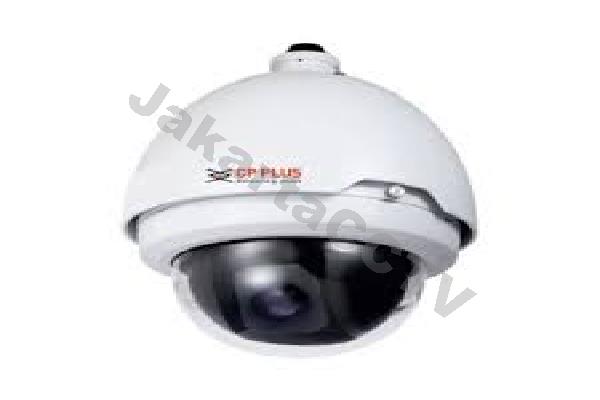

CP Plus CP-UAP-SY23C-EH

Rp 10.700.000

tidak termasuk pengiriman

1/4" Super HAD CCD II
High Resolution of 600TVL
Min. Illumination of 0.01 Lux@F1.6
Powerful 23x optical zoom
Day/Night (ICR), D-WDR, DNR (2D and 3D), D-WDR, Auto iris, Auto focus, AWB, AGC, BLCMax 300 °/s pan speed, 360° continuous pan rotation & auto flip with no blind spot monitor
Up to 255 preset, 5 auto scan, 8 tour, 5 patternAuto recognition of general protocols Pelco-P/D
Auto restore to previous PTZ and lens status after power failure
IP66 all-environments protection, 4000V thunder-proof, constant temperature automatic control & anti-fog

Qty:

Overview
Contact Us

Specifications
Image Sensor	1/4" Super HAD CCD II
Pixels	PAL: 752(H) x 582(V) NTSC: 768(H) x 494(V)
Resolution	600 TVL
Min. Illumination	0.01 Lux/F1.6
S/N Ratio	more than 50dB
Electronic Shutter	Auto: 1/s~1/100,000s Manual: 1/s~1/10,000s
Zoom Optical	23x
Iris Control	Auto Iris
Focus Mode	Auto
White Balance (AWB)	AAWB (3000 to 7500K), ATW(2000 to 1000K), Indoor(3200K), Outdoor(5800K), Manual
Gain Control (AGC)	Auto / Manual
Back Light Comp.	ON/OFF
Day & Night (ICR)	Yes
Special Functions	Day/Night (ICR), D-WDR, DNR (2D&3D), D-WDR, Auto iris, Auto focus, AWB, AGC, BLC
Pan Range	Horizontal: 0°~360°endless, Vertical: -2°~90° auto flip 180° to continue monitor
Pan Speed	Horizontal: 0.1°~300°/s
Tilt Speed	Vertical: 0.1°~150°/s
Preset Speed	Horizontal: 300°/s, Vertical: 180°/s
Surge Protection	Yes
Number of Presets	255
Operating Temp	-40ºC ~ 60ºC
Alarm	2/1 alarm input/output, triggering Preset/Tour/Pattern/Scan/Alarm output
Communication	RS485
Sync. System	Interlacing
Video Output	CVBS: 1.0Vp-p / 75ohm
Power Supply	AC 24V/1.5A(±10%)
Power Consumption	15W(Indoor), 27W(Outdoor, heater on)
IP Rating	IP66
Dimensions	Φ222(mm) x 322(mm)
Weight	5.0kg
Certifications	CE, FCC and RoHS

Namamu *

Email Anda *

Pertanyaan *

Specifications
Image Sensor	1/4" Super HAD CCD II
Pixels	PAL: 752(H) x 582(V) NTSC: 768(H) x 494(V)
Resolution	600 TVL
Min. Illumination	0.01 Lux/F1.6
S/N Ratio	more than 50dB
Electronic Shutter	Auto: 1/s~1/100,000s Manual: 1/s~1/10,000s
Zoom Optical	23x
Iris Control	Auto Iris
Focus Mode	Auto
White Balance (AWB)	AAWB (3000 to 7500K), ATW(2000 to 1000K), Indoor(3200K), Outdoor(5800K), Manual
Gain Control (AGC)	Auto / Manual
Back Light Comp.	ON/OFF
Day & Night (ICR)	Yes
Special Functions	Day/Night (ICR), D-WDR, DNR (2D&3D), D-WDR, Auto iris, Auto focus, AWB, AGC, BLC
Pan Range	Horizontal: 0°~360°endless, Vertical: -2°~90° auto flip 180° to continue monitor
Pan Speed	Horizontal: 0.1°~300°/s
Tilt Speed	Vertical: 0.1°~150°/s
Preset Speed	Horizontal: 300°/s, Vertical: 180°/s
Surge Protection	Yes
Number of Presets	255
Operating Temp	-40ºC ~ 60ºC
Alarm	2/1 alarm input/output, triggering Preset/Tour/Pattern/Scan/Alarm output
Communication	RS485
Sync. System	Interlacing
Video Output	CVBS: 1.0Vp-p / 75ohm
Power Supply	AC 24V/1.5A(±10%)
Power Consumption	15W(Indoor), 27W(Outdoor, heater on)
IP Rating	IP66
Dimensions	Φ222(mm) x 322(mm)
Weight	5.0kg
Certifications	CE, FCC and RoHS
