Produk sebelumnyaCP Plus CP-UNC-VY20ZL2C

Produk sesudahnyaCP Plus CP-UNC-VY30FL2C

Brand: CP Plus

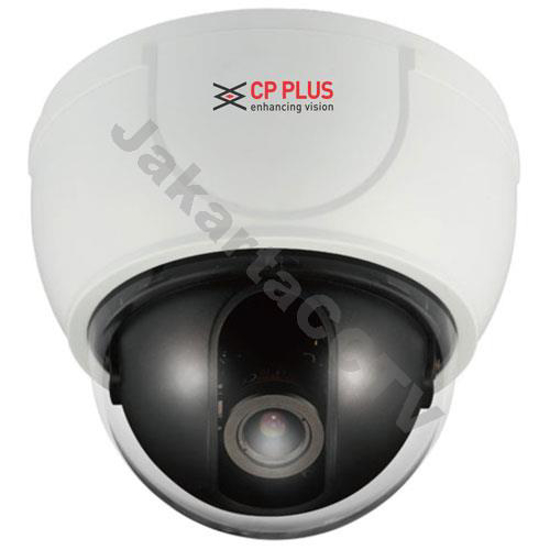

CP Plus CP-UNC-VY30FC

Rp 10.500.000

tidak termasuk pengiriman

1/2.8” 3.0 Megapixel progressive scan Exmor CMOS
H.264 & MJPEG dual-stream encoding
Max 20fps@3.0M(2048×1536)&25/30fps@1080P(1920×1080)
DWDR, Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
3.3~12mm varifocal lens
Built-in 2/1 alarm in/out
Supports PoE, IP66 & IK10
Max 32GB Micro SD Card for Local Storage
Mobile Software: CMOB
CMS Software: IPSS

Qty:

Overview
Contact Us

Specification :

Image Sensor
1/2.8” 3.0 Megapixel progressive scan Exmor CMOS
Minimum Illumination
0. 2Lux/F1.4
Shutter Speed
Auto/Manual, 1/50~1/10000s
White Balance
Auto
AGC control
Auto/Manual
Back Light Comp.
BLC / HLC / DWDR
Lens
3.3~12mm
Video Compression
H264/ MJPEG
S/N Ratio
More than 50 dB
Video Streaming
Main Stream: 3M(1~20fps)/1080P/720P(1 ~ 25/30fps), Sub Stream: D1/CIF(1 ~ 25/30fps)
Video Output
1 channel BNC(1.0Vp-p, 75Ω)
Resolution
3.0M(2048×1536) / 1080P(1920×1080) /720P(1280×720) / D1(704×576) /CIF(352×288)
Privacy Masking
Up to 4 areas
ICR
Auto(ICR) / Color / B/W
Audio Input
1 channel RCA
Audio Output
1 channel RCA
Audio Compression
G.711a / G.711u / PCM
Alarm IN
2 Input
Alarm Out
1 Output
Interface
RJ-45 (10/100Base-T) & RS485
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF Ver 2.0
User Account
10 users
Micro SD
Max 32GB, local storage
Auto Iris
Supported
Operating Temperature
-10°C~+60°C, 10%~90%
Power Source
DC12V/AC24V, PoE
Power Consumption
Max 10W
Weatherproof Standard
IK10 & IP66
Regulatory
CE, FCC and RoHS
Dimension
Φ160mm×118.5mm
Weight
1.25Kg

Specification :

Image Sensor
1/2.8” 3.0 Megapixel progressive scan Exmor CMOS
Minimum Illumination
0. 2Lux/F1.4
Shutter Speed
Auto/Manual, 1/50~1/10000s
White Balance
Auto
AGC control
Auto/Manual
Back Light Comp.
BLC / HLC / DWDR
Lens
3.3~12mm
Video Compression
H264/ MJPEG
S/N Ratio
More than 50 dB
Video Streaming
Main Stream: 3M(1~20fps)/1080P/720P(1 ~ 25/30fps), Sub Stream: D1/CIF(1 ~ 25/30fps)
Video Output
1 channel BNC(1.0Vp-p, 75Ω)
Resolution
3.0M(2048×1536) / 1080P(1920×1080) /720P(1280×720) / D1(704×576) /CIF(352×288)
Privacy Masking
Up to 4 areas
ICR
Auto(ICR) / Color / B/W
Audio Input
1 channel RCA
Audio Output
1 channel RCA
Audio Compression
G.711a / G.711u / PCM
Alarm IN
2 Input
Alarm Out
1 Output
Interface
RJ-45 (10/100Base-T) & RS485
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF Ver 2.0
User Account
10 users
Micro SD
Max 32GB, local storage
Auto Iris
Supported
Operating Temperature
-10°C~+60°C, 10%~90%
Power Source
DC12V/AC24V, PoE
Power Consumption
Max 10W
Weatherproof Standard
IK10 & IP66
Regulatory
CE, FCC and RoHS
Dimension
Φ160mm×118.5mm
Weight
1.25Kg
