Brand: Axis

Axis Q7404

Superb Video Quality
Multiple H.264 Streams
Full frame rate in all resolutions
Intelligent Video Capabilities
Two-way audio support

Qty:

Overview
Specifications
Contact Us

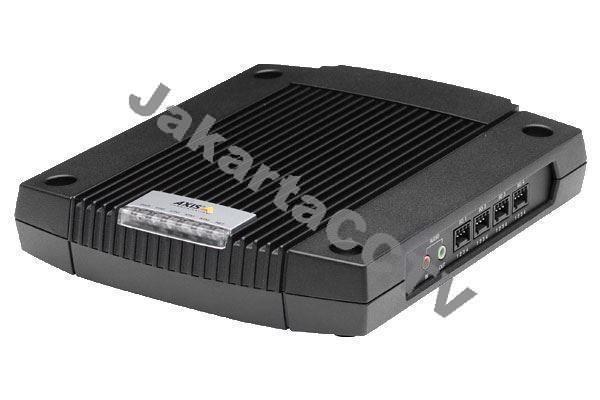

AXIS Q7404

Jual AXIS Q7404 harga murah di jakartaCCTV, merupakan Video Encoder 4 channel yang berkinerja sangat baik memberikan kualitas video dan audio tinggi namun hemat biaya. AXIS Q7404 mampu menyederhanakan migrasi ke Network Video pada sistem keamanan Anda tanpa perlu meng-upgradenya. Q7404 mendukung semua jenis Analog Camera termasuk PTZ Camera melalui jaringan IP (Internet Protocol). Kebijakan terbuka dari AXIS memastikan integrasi sederhana dan cepat dengan kebanyakan PTZ Analog Camera di pasar CCTV dengan memasukkan driver perangkat lunak untuk lebih dari 25 Analog Camera yang berbeda. RS-422 dan RS-485 dari Q7404 berguna untuk mengendalikan PTZ Analog Camera. Input/Output dapat dikonfigurasikan melalui relay eksternal dan sensor untuk mengaktifkan lampu, mengunci / membuka pintu dll. Jadikan AXIS Q7404 sebagai salah satu system keamanan pada property Anda dengan mendapatkannya hanya di JakartaCCTV.

Video Encoder 4 channel ini mampu memberikan 2 video streaming secara bersamaan dengan masing-masing format H.264 dan MJPEG, dalam resolusi D1 full frame rate (720x480 NTSC dan 720x576 PAL). Kompresi format video H.264 berfungsi mengurangi bandwidth secara drastis dan kapasitas penyimpanan data tanpa mengorbankan kualitas gambar. MJPEG yang ada di AXIS Q7404 berguna untuk meningkatkan fleksibilitas. AXIS Q7404 merupakan cara yang mudah untuk sistem keamanan CCTV yang pintar. Produk dari AXIS terutama AXIS Q7404 hanya bisa Anda dapatkan di JakartaCCTV. JakartaCCTV adalah distributor resmi semua produk AXIS yang memberikan Anda penawaran harga special.

FITUR AXIS Q7404

Video format H.264 dan MJPEG
Resolusi 720x480 NTSC atau 720x576 PAL full frame rate diresolusi D1
Mendukung PTZ Analog Camera
Bisa menggunakan Power over Ethernet (PoE) sebagai sumber daya

AXIS Q7404 hanya bisa Anda dapatkan hanya di JakartaCCTV dengan harga 4 Channel Video Encoder murah. Kami menyediakan paket CCTV murah dan paket DVR murah mulai dari jual IP camera, jual IR camera, jual Analog camera, jual Dome camera, jual Cube camera, jual Box camera serta jual DVR 4 channels, jual DVR 6 channels, jual DVR 8 channels, jual DVR 12 channels, jual DVR 16 channels, jual DVR 32 channels. Jual 4 Channel Video Encoder murah di Jakartahanya di JakartaCCTV.

Spesifikasi produk

Video Compression	H.264 (MPEG-4 Part 10/AVC) Motion JPEG
Resolution	NTSC: 720x480 to 176x120 PAL: 720x576 to 176x144
Frame Rate	H.264 30/25 (NTSC/PAL) fps in all resolutions & MJPEG 30/25 (NTSC/PAL) fps in all resolutions
Video Streaming	Multiple, individually configurable streams per channel in H.264 and/or Motion JPEG: 3 simultaneous streams in max. resolution at 30/25 fps from each channel; more streams if identical or limited in frame rate/resolution Controllable frame rate and bandwidth VBR/CBR H.264
Image settings	Compression, color, brightness, contrast Rotation: 90°, 180°, 270° Aspect ratio correction Mirroring of images Text and image overlay Privacy mask Enhanced deinterlace filter
Audio streaming	Two way, half-duplex on Channel 1
Audio Compression	AAC-LC 8 kHz 32 kbit/s, 16 kHz 64 kbit/s G.711 PCM 8 kHz 64 kbit/s G.726 ADPCM 8 kHz 32 or 24 kbit/s
Audio I/O	External microphone input or line input Line level output
Security	Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X* network access control, digest authentication, user access log
Supported Protocols	IPv4/v6, HTTP, HTTPS, IEEE 802.1X, QoS layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Application Programming Interface	Open API for software integration, including VAPIX® from Axis Communications available at www.axis.com AXIS Camera Application Platform from Axis Communications; specifications available at www.axis.com
Intelligent Video	Video motion detection, active tampering alarm, audio detection
Trigger Events	Intelligent video, external inputs, video loss
Alarm Events	File upload via FTP, HTTP and email Notification via email, HTTP and TCP External output activation PTZ presets
Video Buffer	64 MB pre- and post-alarm per channel
Pan/ Tilt/ Zoom	Wide range of analog PTZ cameras supported (drivers available for download at www.axis.com) 100 presets, guard tour, PTZ control queue Supports Windows compatible joysticks
Casing	Metal casing. Standalone or wall mount
Processor and Memory	4x ARTPEC-3, 4x 128 MB RAM, 4x 128 MB Flash
Power	8-20 V DC, max. 16.1 W
Connectors	4 analog composite video BNC inputs, NTSC/PAL auto-sensing RJ-45 10BASE-T/100BASE-TX/1000BASE-T DC terminal block: power in 8-20 V DC, max. 16.1 W 4 I/O terminal blocks with 2 configurable inputs/outputs per channel 3.5 mm mic/line in, 3.5 mm line out 4 RS-485/RS-422 serial ports
Operating Conditions	0 °C - 45 °C (32 °F - 113 °F) Humidity 20-80% RH (non-condensing)
Approvals	EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22, EN 60950-1 Power supply PS-P: EN 60950-1, UL, CSA
Weight	796 g (1.75 lb.)
Included accessories	Power supply, mounting and connector kits, Installation Guide, CD with installation and management tools, software and User’s Manual, 4 Windows decoder user licenses
