Brand: Axis

Axis P3904-R

Telp untuk Harga

Compact, rugged design.
HDTV video quality.
Traffic Light mode.
Edge storage.

Qty:

Overview
Specifications
Contact Us

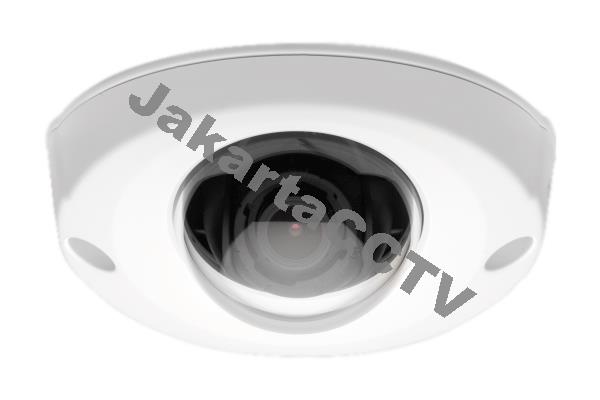

AXIS P3904-R NETWORK CAMERA

AXIS P3904-R network dome camera dirancang untuk pengawasan di dalam ruangan, kamera model ini mampu beroperasi dengan optimal pada suhu -30°C to 60°C (-22°F to 140°F). Jual Network Kamera AXIS P3904-R harga murah di Jakarta. Kamera AXIS P3904-R memiliki lensa kamera yang berukuran 2.8 MM sehingga mampu memberikan gambaran yang lebih jelas. Sensor gambar Progressive scan RGB CMOS 1/2.8”. Kamera model ini juga memiliki angle pan ±30°, tilt 15-90°, rotasi ±175° dengan waktu bidik sekitar 1/28000 s to 2 s.

Fixed dome camera AXIS P3904-R dapat terhubung dengan jaringan melalui konektor RJ45: Male RJ45 10BASE-T/100BASE-TX dan M12: Rugged, Female, D-coded M12, dengan fitur Power over Ethernet IEEE 802.3af/802.3at Type 1 yang terpasang pada CCTV AXIS P3904-R, sehingga mampu menyalurkan listrik dengan menggunakan kabel UTP/TSP atau melalui jaringan oleh karena itu CCTV dari AXIS mampu untuk menghemat biaya installasi. AXIS P3904-R memiliki berat yang cukup ringan yaitu hanya 269 g (0.59 lb) sehingga dapat dipasang pada langit - langit ruangan untuk pemantauan yang lebih optimal untuk mengawasi semua ruangan. Network Kamera AXIS P3904-R.

FITUR AXIS P3904-R

PoE (Power over Ethernet) IEEE 802.3af/802.3at Type 1.
Gambar kualitas HDTV.
Dengan desain compact sehingga CCTV AXIS kuat terhadap benturan.
Dilengkapi dengan fitur Traffic Light mode.
Instalasi pemasangan yang mudah serta cepat dan dapat diandalkan.
Mode penyimpanan tepi yang berfungsi untuk langsung menyimpan video hasil pengawasan pada kartu microSD.

CCTV AXIS P3904-R hanya bisa Anda dapatkan hanya di JakartaCCTV dengan harga network cctv murah. Kami menyediakan paket CCTV murah dan paket DVR murah mulai dari jual IP camera, jual IR camera, jual Analog camera, jual Dome camera, jual Cube camera, jual Box camera serta jual DVR 4 channels, jual DVR 6 channels, jual DVR 8 channels, jual DVR 12 channels, jual DVR 16 channels, jual DVR 32 channels. Jual 16CH DVRmurah di Jakarta hanya di JakartaCCTV. JakartaCCTV terpercaya dan berpengalaman. Pemasangan CCTV yang langsung ditangani oleh teknisi yang berpengalaman.

Spesifikasi produk

Image Sensor	Progressive scan RGB CMOS 1/2.8”
Lens	M12 mount, Fixed iris, Megapixel resolution, 3.6mm, F2.0, 87° viewa Vertical angle of view: 47° Diagonal angle of view: 102°
Min.Illumination	Color: 0.2 lux
Shutter Time	Power line frequency 50 Hz: 1/28000 s to 2 s Power line frequency 60 Hz: 1/33500 s to 2 s
Angle Adjustment	Pan ±30°, Tilt 15-90°, Rotation ±175°
Video Compression	H.264 Main and Baseline Profiles (MPEG-4 Part 10/AVC) Motion JPEG
Video Resolution	1280x720 to 160x90
Video Framerate	30 fps in all resolutions
Video Framerate	Multiple, individually configurable streams in H.264, Motion JPEG Controllable frame rate and bandwidth, VBR/CBR H.264
Image settings	Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Wide dynamic range - dynamic contrast Rotation: 0°, 90°, 180°, 270° including Corridor Format, Text and image overlay, Privacy mask, Mirroring of images, Traffic Light mode
Pan/ Tilt/ Zoom	Digital PTZ, Preset Positions, Guard Tour, Control Queue
Security	Password protection, IP address filtering, HTTPSb encryption, Digest authentication, User access log
Protocol Support	IPv4/v6, HTTP, HTTPSb , SSL/TLSb , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Application Programming Interface	Open API for software integration, including VAPIX® and AXIS Camera Application Platform, specifications at www.axis.com AXIS Video Hosting System (AVHS) with One-click Connection ONVIF Profile S, specification at www.onvif.org
Intelligent Video	Video motion detection, Active tampering alarm, AXIS Camera Application Platform enabling installation of additional applications
Trigger Events	Intelligent video, Time scheduled, Edge storage events
Event actions	File upload: FTP, HTTP, Email Notification: Email, HTTP, TCP, Video recording to edge storage, Pre- and post-alarm video buffering, Status LED activation
Data streaming	Event data
Built-in installation aids	Pixel counter
Casing	Aluminum and polycarbonate casing
Memory	256 MB RAM, 128 MB Flash
Power	Power over Ethernet IEEE 802.3af/802.3at Type 1, Class 2, max. 4.1 W
Connectors	Male RJ45 10BASE-T/100BASE-TX, Rugged, Female, D-coded M12 connector with rotatable coupling nut All connectors support Power over Ethernet
Edge Storage	microSD/microSDHC/microSDXC slot supporting memory cards with up to 64 GB of storage. For best recording performance, use an SDHC or SDXC card with speed class 10 Support for recording to dedicated network-attached storage (NAS)
Operating Conditions	-30°C to 60°C (-22°F to 140°F)
Approvals	EN 55022 Class B, EN 55024, EN 50581, EN 61000–6–1, EN 61000–6–2, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, IEC/EN/UL 60950-1, IEC 60529 IP67, NEMA 250 Type 4X, IEC/EN 62262 IK08, EN 50155 Class T3, EN 45545, EN 50498, EN 50121-4, IEC 62236-4, ECE R10 rev.04 (E approval)
Weight	269 g (0.59 lb)
Included accessories	Installation and Management Software CD, Installation guide, Drill hole template, Top cover tool, Lens tool, Allen key resitorx, Windows decoder 1-user license
Optional accessories	Lenses (2.8 mm: 115° viewc , F2.0; 6 mm: 52° viewc F1.6; 8 mm: 40° viewc F1.6), AXIS T96B05 External Housing, AXIS T94D01S Mounting Bracket, AXIS T94D02S Mounting Bracket, Network Coupler IP66, Network Cable Coupler Indoor
Video Management Software	AXIS Camera Companion (included), AXIS Camera Station and video management software from Axis’ Application Development Partners (not included). For more information, see www.axis.com/products/video/software
