SAMSUNG SRN-4000P2T

tidak termasuk pengiriman

• Up to 64CH and 5M supported
• 400Mbps network camera recording
• Max. 12 hot swap HDDs (RAID 5/6)
• VGA/HDMI local monitor
• iSCSI storage supported
• Redundant hot swap power supply
• Video summary search supported

Qty:

Overview
Contact Us

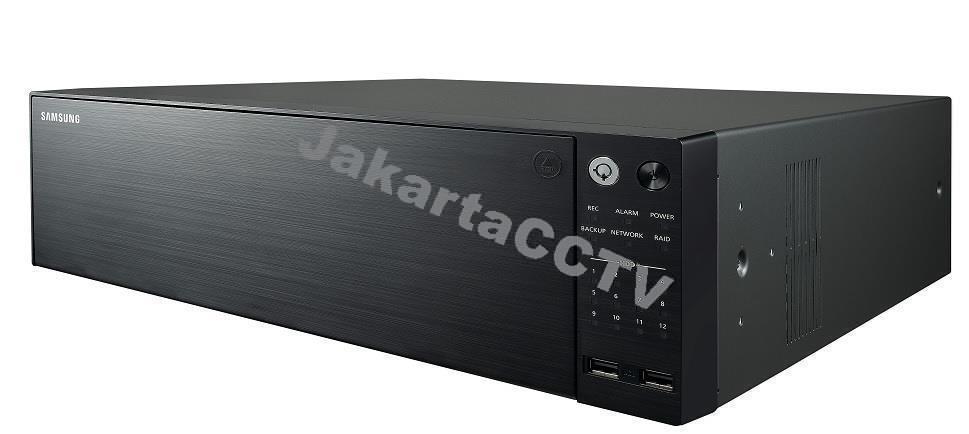

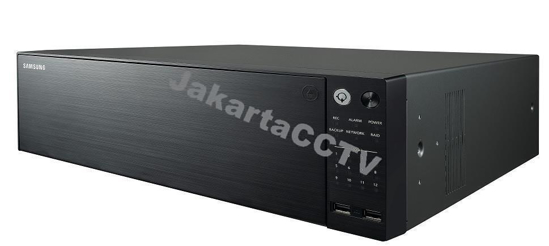

Jual NVR murah, SAMSUNG HANWHA TECHWIN SRN-4000P2T yang bisa anda beli sekarang dari JakartaCCTV dengan harga yang terjangkau dan kompetitif. Network Video Recorder HANWHA SRN-4000P2T ini mampu merekam video dengan resolusi hingga 5MP pada kecepatan 400Mbps dengan menerima input dari 64 saluran IP kamera. File yang direkam bisa diputar ulang secara sinkron ke 16 saluran pada saat yang bersamaan dalam format VGA/HDMI. File tsb pun lalu bisa disimpan secara internal karena NVR ini dapat dipasang dengan 12 internal HDD yang memiliki kombinasi kapasitas hingga 72TB.

Untuk mengoptimasi fungsi penyimpanan & perekaman, NVR ini juga mendukung fitur hot swap pada HDDnya yang berarti pengguna tidak perlu mematikan perangkat pada saat mengganti hard disk, dukungan penyimpanan iSCSI yang merupakan fasilitas penyimpanan data berbasis IP (internet protocol), teknologi RAID level 5/6 yang bisa membaca/menulis file berukuran besar dengan super cepat, power supply cadangan dengan fitur hot swap yang dapat diganti tanpa harus mematikan recorder sehingga menjaga perangkat agar dapat terus menyala pada saat power supply utama mengalami masalah, serta dukungan pencarian video yang telah dirangkum. Dan jika anda ingin menggabungkan NVR ini dengan kamera CCTV merek lainnya, maka anda tidak perlu khawatir karena NVR ini juga mematuhi standard ONVIF yang membuatnya cocok dengan banyak merek lainnya.

FITUR & FUNGSI SAMSUNG SRN-4000P2T

Up to 64CH and 5M supported
400Mbps network camera recording
Max. 12 hot swap HDDs (RAID 5/6)
VGA/HDMI local monitor
iSCSI storage supported
Redundant hot swap power supply
Video summary search supported

Network Video Recorder SAMSUNG SRN-4000P2T ini hanya bisa anda dapatkan dengan harga distributor yang murah di JakartaCCTV, yang disertai dengan garansi resmi 2 tahun dari distributor HANWHA TECHWIN di Indonesia. Beli produk ini dari kami sekarang dan anda juga akan mendapatkan tips yang aman dan berguna dalam memilih dan membeli NVR SAMSUNG yang sesuai dengan kebutuhan anda. Selain itu kami juga menawarkan jasa pemasangan CCTV untuk setiap paket/produk CCTV yang kami jual. Jadi tunggu apa lagi ? Hubungi kami sekarang juga.

Display
N/W Camera	Inputs	Up to 64CH
	Resolution	CIF ~ 5M
	Protocols	Samsung, ONVIF
Live	Local Display	HDMI / VGA
Live	Multi Screen Display	[Local monitor] : 1 / 4 / 9 / 16 / 1+5 / 1+7 / 1+12 / Sequence [Web] : 1 / 4 / 9 / 16 / 32 / 64 / Sequence
Performance
Operating System	Embedded	Linux
Recording	Compression	H.264, MPEG-4, MJPEG
	Recording Bit Rate	Max. 400Mbps (2M 64camera real-time recording)
	Resolution	CIF ~ 5M
	Mode	Manual, Schedule (Continuous / Event), Event (Pre / Post)
	Event Trigger	Alarm input, Video loss, Camera event (Sensor, MD, Video Analytics), VA (Up to 4CH selectable, Advanced MD, Object classfication (People, Car))
	Event Action	E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Search & Playback	Playback Bandwidth	25Mbps (16CH simultaneously)
	Mode	Date & Time (Calendar) / Event log list / Text search (POS) / Video summary search *By directions, types & colors of objects
	Simultaneous Playback	16CH (Local monitor, CMS), 4CH (Web)
	Resolution	CIF ~ 5M
	Playback Function	Fast forward / backward, Move one step up / down
Storage	Max. Internal HDDs	12 SATA (Hot swap), Max. 72TB (Non-RAID mode)
	External	iSCSI storage : vessRAID (1840i, 2600i), Max. 192TB (JBOD)
	RAID	RAID-5/6
Backup	File Backup (Via Web)	BU/Exe (GUI), JPG/AVI (Network)
Backup	Function	Max. 16CH playback, Date-time/title display
Sensor	Input / Output	8 / 4 (NO/NC selectable)
Audio	Input	64CH (Network)
	Compression	G.711, G.726
	Audio Communication	2-way
Network
Interface		RJ-45, Gigabit Ethernet x 4
Protocol Support		TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S)
DDNS		Samsung iPOLiS DDNS
Network	Total Throughput Bandwidth	Max. 700Mbps
Network	Transmission Bandwidth	Max. 400Mbps
Max. Remote Users		Search 1 / Live unicast 10 / Live multicast 20
IP		IPv4 / IPv6
Language		English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
OS		Supported OS : Window XP (Service pack 2 or above), Vista, 7, 8, Mac OS X (10.7 or above)
Web Browser		Microsoft Internet Explorer (Updated Ver. 8 ~10, IE 9 or above recommended) Mozilla Firefox (Ver. 19.x or above), Google Chrome (Ver. 26.x or above), Apple Safari (Ver. 6.0.3 or above)
Viewer Software	Type	SSM, Webviewer, SmartViewer, iPOLiS Mobile Viewer
Viewer Software	CMS Support	SDK / CGI (SUNAPI)
Smart Phone	Support Model	Android, iOS
	Protocol Support	RTP, RTSP, HTTP, CGI (SUNAPI)
	Control	Live 9CH, Playback 1CH
	Max. Remote Users	Live 10, Playback 1
Functions
Camera Setup	Register	Auto, Manual
Camera Setup	Setup Items	IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS)
PTZ	Control	Via GUI, Webviewer, SPC-2000
PTZ	Preset	255 presets
System Control		Mouse
Indicator / Interface
Front	Indicator	LED status indicator : HDD action 12, RAID status 1, Alarm 1, Power 1, Record 1, Backup 1, Network 1
Front	Switch	PWR switch 1ea, Key-lock 1ea
Connections	VGA	1ea
	HDMI	1ea
	Audio	Out (1ea, RCA, Line)
	Ethernet	4 RJ-45, 10/100/1000 Base-T
	Alarm	In 8ea (Terminal block) / Out 4ea (Terminal block)
	USB	2ea (Front)
	Reset	Switch 1ea
	Power Cord	2ea AC Inlet
System
Log	Log List	Max. 20000 (System log, Event log each)
General
Electrical	Input Voltage / Current	100 ~ 240V AC ±10%, 50/60Hz, 3 ~ 1.5A (Dual SMPS)
Electrical	Power Consumption	Max. 217W (740 BTU with 2TB HDD 12ea)
Environmental	Operating Temperature	+0°C ~ +40°C (+32°F ~ +104°F)
Environmental	Operating Humidity	20% ~ 85% RH
Mechanical	Color / Material	Black / Metal
	Dimensions (WxHxD)	436.0 x 132.0 x 450.0mm (17.17" x 5.2" x 17.72") (3U)
	Weight	11.8Kg (26.01 lb) (HDD not included)
Approvals	Safety	UL
Approvals	EMC	CE, FCC, CCC, Gost-R
