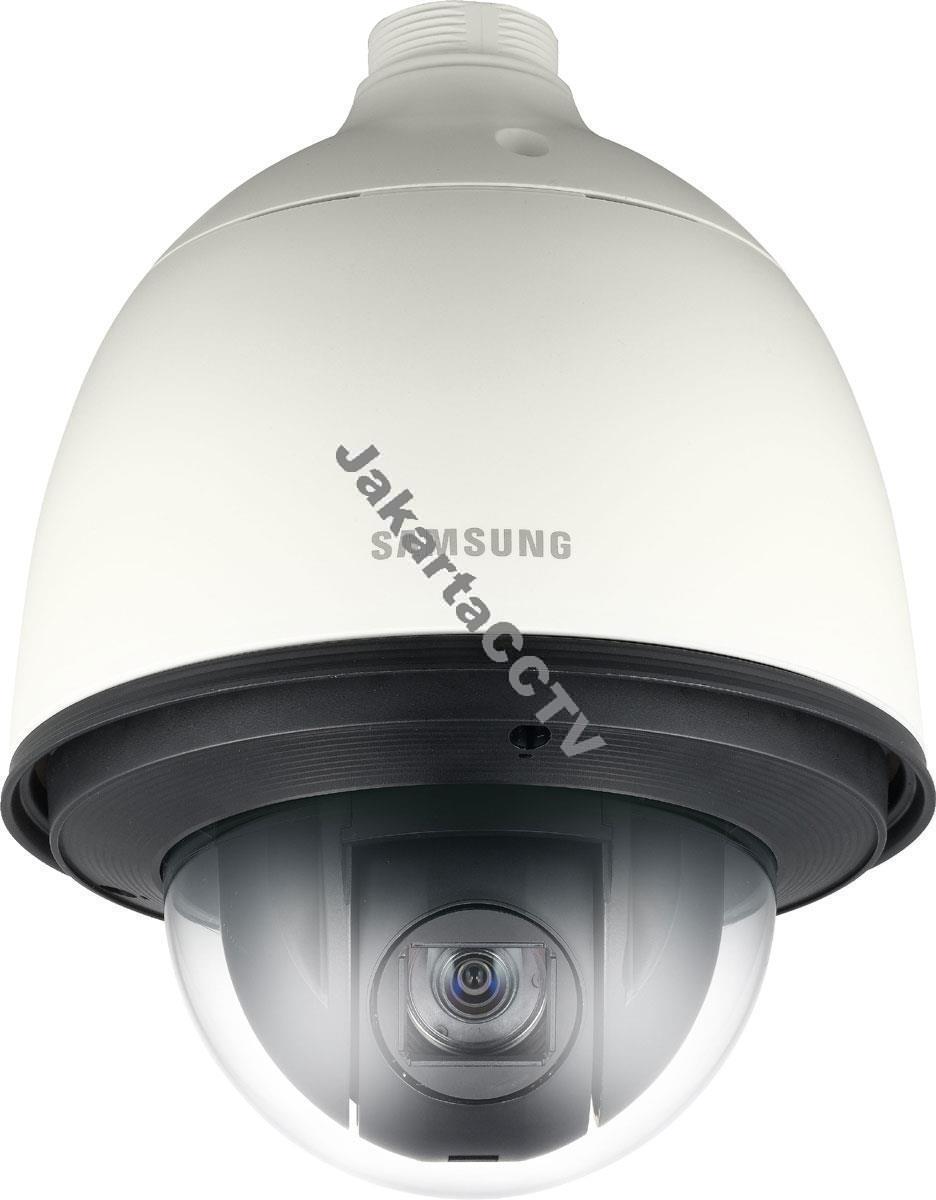

SAMSUNG SNP-L5233HP

tidak termasuk pengiriman

• Max. 1.3M (1280 x 1024) resolution
• 16 : 9 HD (720p) resolution support
• 4.44 ~ 102.1mm (23x) optical zoom, 12x digital zoom
• 0.05Lux@F1.6 (Color), 0.005Lux@F1.6 (B/W)
• H.264, MJPEG dual codec, Multiple streaming
• Day & Night (ICR), WDR (100dB), Intelligent video analytics
• PoE+, SD/SDHC/SDXC memory slot, Bi-directional audio support
• IP66 / IK10

Qty:

Overview
Contact Us

Jual IP Camera murah, SAMSUNG HANWHA TECHWIN SNP-L5233HP CCTV, yang bisa anda beli sekarang dari JakartaCCTV dengan harga kompetitif dan terjangkau. IP Kamera dome PTZ HANWHA ini dilengkapi dengan lensa yang memiliki jarak fokus bervariasi antara 4.44-102.1 mm yang terlindungi dalam casing anti air IP66 & anti pencurian / anti pengrusakan IK10. Selain menangkap gambar/video dengan resolusi hingga 1.3MP (pada 720P HD), lensa ini juga mampu menzoom gambar/video hingga 23x dan berotasi secara vertikal & horizontal dari posisi tetap. Pengguna dapat melaksanakan fungsi ini sambil menstreaming gambar/video tsb ke berbagai output.

Area outdoor merupakan tempat yang direkomendasikan untuk penempatan kamera ini karena kamera ini memiliki pemanas built-in untuk penempatan di daerah bersuhu rendah dan banyak fitur cerdik seperti Filter IR Cut Day/Night yang dapat menampilkan image berwarna pada siang hari dan secara otomatis beralih ke image monochrome pada saat suasana berangsur gelap, Teknologi True WDR (Wide Dynamic Range) 100dB yang dapat menangkap gambar yang jelas pada kondisi dimana objek dikelilingi oleh cahaya belakang yang kuat/terang, sambil menjaga latar belakangnya agar dapat terlihat jelas, dan analisis video pintar yang meliputi tampering detection yang dapat mendeteksi ketika kamera diganggu, virtual line detection yang bisa mendeteksi penyusupan / penerobosan melewati batas garis tertentu yang dispesifikasikan oleh pengguna, audio detection yang dapat mendeteksi suara yang lebih keras dari tingkat tertentu yang dispesifikasikan oleh pengguna, serta Face detection yang bisa mendeteksi dan mengenali wajah manusia.

Selain itu kamera in juga mendukung PoE+ (Power Over Ethernet+), penyimpanan on board melalui Slot SD Card, dan komunikasi audio dua arah yang memungkinkan penggunanya untuk mendengar dan berbicara dengan subjek yang sedang diawasi.

FITUR & FUNGSI SAMSUNG SNP-L5233HP

Max. 1.3M (1280 x 1024) resolution
16 : 9 HD (720p) resolution support
4.44 ~ 102.1mm (23x) optical zoom, 12x digital zoom
0.05Lux@F1.6 (Color), 0.005Lux@F1.6 (B/W)
H.264, MJPEG dual codec, Multiple streaming
Day & Night (ICR), WDR (100dB), Intelligent video analytics
PoE+, SD/SDHC/SDXC memory slot, Bi-directional audio support
IP66 / IK10

Hubungi kami sekarang untuk mendapatkan penawaran terbaik dengan harga distributor yang murah untuk IP Cam HANWHA SNP-L5233HP ini yang disertai dengan garansi resmi 2 tahun dari distributor HANWHA TECHWIN di Indonesia. Kami, JakartaCCTV akan dengan senang hati membimbing dan membantu anda memilih IP Kamera SAMSUNG atau paket CCTV lainnya yang paling cocok untuk kebutuhan anda serta memberikan penawaran untuk jasa pasang CCTV & proses settingnya.

VIDEO
Imaging Device	1/3" 1.3M CMOS
Total / Effective Pixels	1,312(H) x 1,069(V), 1.40M pixels / 1,305(H) x 1,049(V), 1.37M pixels
Scanning System	Progressive
Min. Illumination	Color : 0.1Lux (1/30sec, F1.6, 50IRE, AGC high), 0.005Lux (2sec, F1.6, 50IRE, AGC high) B/W : 0.01Lux (1/30sec, F1.6, 50IRE, AGC high), 0.0005Lux (2sec, F1.6, 50IRE, AGC high) Color : 0.05Lux (1/30sec, F1.6, 30IRE), 0.0025Lux (2sec, F1.6, 30IRE) B/W : 0.005Lux (1/30sec, F1.6, 30IRE), 0.00025Lux (2sec, F1.6, 30IRE)
S / N Ratio	50dB
Video Output	CVBS : 1.0 Vpp / 75Ω composite, 720 x 576, for installation
LENS
Focal Length (Zoom Ratio)	4.44 ~ 102.1mm (Optical 23x)
Max. Aperture Ratio	F1.6(Wide) / F3.63(Tele)
Angular Field of View	H : 56.8°(Wide) ~ 2.8°(Tele) / V : 46.3°(Wide) ~ 2.24°(Tele)
Min. Object Distance	Wide : 1.5m (4.92ft), Tele : 1.9m (6.23ft)
Focus Control	Auto / Manual / One push
Lens / Mount Type	DC auto iris / Board-in type
Pan / Tilt / Rotate
Pan / Tilt Range	360° Endless / 210° (-15° ~195° )
Pan / Tilt Speed	Preset : 500°/sec, Manual : 0.024°/sec ~ 120°/sec
Sequence	Preset (255ea), Swing, Group (6ea), Trace, Tour (1ea), Auto run, Schedule
Preset Accuracy	±0.2°
Azimuth	Yes (E / W / S / N / NE / NW / SE / SW)
OPERATIONAL
Camera Title	Off / On (Displayed up to 45 characters)
Day & Night	Auto (ICR) / Color / B/W
Backlight Compensation	Off / BLC / WDR
Wide Dynamic Range	100dB
Contrast Enhancement	SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
Defog	Off / Auto / Manual
Motion Detection	Off / On (4ea rectangular zones)
Privacy Masking	Off / On (32 zones of rectangle zone) with zoom threshold mosaic option
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor / Mercury
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital Zoom	12x
Flip / Mirror	Off / On
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
Alarm I/O	Input 4ea / Output 2ea (Relay)
Remote Control Interface	RS-485
RS-485 Protocol	Samsung-T/E, Pelco-P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE
Alarm Triggers	Motion detection, Tampering, Audio detection, Face detection, Video analytics, Alarm input, Network disconnection
Alarm Events	File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) or NAS recording at Alarm triggers, External output
NETWORK
Ethernet	RJ-45 (10/100BASE-T )
Video Compression Format	H.264 (MPEG-4 part 10 / AVC), MJPEG
Resolution	1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate	H.264 : Max. 30fps at all resolutions MJPEG : 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps
Smart Codec	Manual mode (Area-based : 5ea), Face detection mode
Video Quality Adjustment	H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method	H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
Audio In	Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out	Line out (3.5mm mono jack), Max output level : 1 Vrms
Audio Compression Format	G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Bi-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	10 users at unicast mode
Edge Storage	SD/SDHC/SDXC slot for supporting memory card Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded NAS (Network Attached Storage)
Application Programming Interface	ONVIF profile S, SUNAPI (HTTP API), SVNP 1.2
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
Web Viewer	Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 32), Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software	SmartViewer, SSM
ENVIRONMENTAL
operating Temperature / Humidity	24V AC : -50°C ~ +55°C (-58°F ~ +131°F) / Less than ~ 90% RH PoE+ : -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection	IP66
Vandal Resistance	IK10
ELECTRICAL
Input Voltage / Current	24V AC ±10%, PoE+ (IEEE802.3af, Class4)
Power Consumption	Max. 20W
MECHANICAL
Color / Material	Ivory / Plastic + Metal
Dimensions (WxHxD)	Ø223.4 x 293.6mm (Ø8.8" x 11.56")
Weight	3.2Kg (7.05 lb)
