Brand: Samsung Wisenet

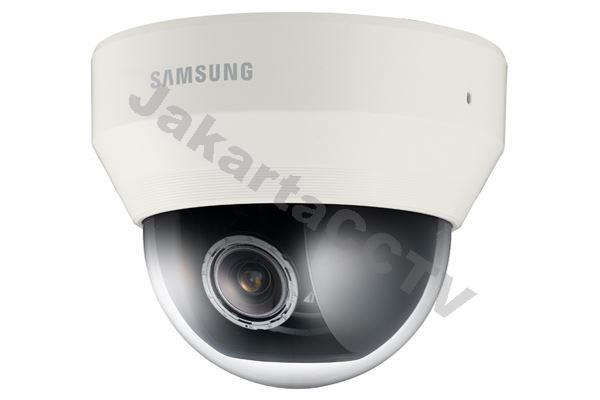

Samsung SND-6084

Max 2M (1920 x 1080), Full HD(1080p) resolution
60fps @ 1920 x 1080
SSLE(Samsung Super Light Enhancer) : 0.1Lux
Enhanced WDR (100dB)/ 30fps @2MP WDR
Built-in 3~ 8.5mm(2.8x) Motorized Varifocal lens
H.264 & MJPEG dual codec
Multi-crop streaming
Face/Motion/Audio Detection
UPnP (Auto Port Forwarding)
Simple Focus, Defog, DIS support
Day & Night(ICR), SD/SDHC/SDXC Memory slot
PoE support

Qty:

Overview
Specifications
Contact Us

SAMSUNG SND-6083 IP Dome Camera

Jual CCTV SAMSUNG SND-6083 IP Dome Camera. Kamera networkSAMSUNG SND-6084 merupakan kamera ip atau network dari SAMSUNGdengan teknologi SAMSUNG Techwin WiseNetIII,dengan tampilan fungsi yang paling canggih dari SAMSUNG dengan kamera 2 Megapiksel serta gambar definisi tinggi 1080P. CCTV model ini memiliki fungsionalitas tingkat tinggi termasuk 100dB WDR yang memberikan 30fps pada kamera 2 Megapiksel 1080P, dengan kinerja optimal pada cahaya rendah 0.1 lux (F1.2, 50IRE, warna) menampilkan gambar yang jelas dalam kondisi cahaya rendah, dan built-in lensa varifocal bermesin yang memberikan kontrol fokus yang lebih mudah. Dengan fitur yang telah ditingkatkan dan teknologi terbaru berguna untuk memerangi tantangan kondisi lingkungan yang sulit, SND-6084 akan memenuhi berbagai kebutuhan keamanan pada pasar profesional.

IP Dome kamera SAMSUNG SND-6083 merupakan kamera CCTV yang dirancang khusus untuk performa kinerja tinggi dengan kualitas gambar yang luar biasa. SAMSUNG SND-6083 merupakan solusi sempurna untuk video kamera pengawas yang efektif serta berkualitas tinggi dengan harga yang terjangkau dan relatif murah. Kamera SAMSUNG SND-6083 ini memberikan hasil tampilan gambar yang jernih jelas dan tajam. SAMSUNG SND-6083 merupakan CCTV yang sangat berguna untuk melakukan pemantauan dengan optimal baik pada waktu siang ataupun malam hari. JakartaCCTV jual kamera CCTV IP Dome kamera SAMSUNG SND-6083 dengan harga distributor di Jakarta.

Fitur SAMSUNG SND-6083

Max. 2M (1920x1080) resolusi, dukungan 1080P Full HD.
60fps @ 1080P Full HD.
Simple Fokus.
True Day & Night (ICR).
3 ~ 8.5mm (2.8x) lensa varifocal bermesin.
Day & Night (ICR), Enhanced DIS, Defog.
WDR (120dB, 30fps @ 2MP).
Built-in SD / slot memori SDHC / SDXC.
Multi-crop Streaming.

JakartaCCTV jual berbagai macam model dan tipe kamera CCTV kualitas terbaik dengan harga yang kompetitif. Jual SAMSUNG ip camera, cctv outdoor, cctv indoor, IP camera, infrared camera dan banyak lainnya. Apabila Anda menginginkan CCTV dengan penawaran terbaik, dengan harga CCTV kamera murah, Anda dapat menghubungi JakartaCCTV, JakartaCCTV jual CCTV kamera murah di Jakarta. Kami jual CCTV dari berbagai brand atau merek ternama dengan fitur dan spesifikasi yang terbaru serta terlengkap. JakartaCCTV menyediakan jasa pemasangan CCTV yang dikerjakan langsung oleh teknisi–teknisi yang handal, berpengalaman dan profesional.

Spesifikasi produk

Imaging Device	1/2.8" 2.38M CMOS
Total Pixels	1,952(H) x 1,116(V)
Effective Pixels	1,944(H) x 1,104(V)
Scanning System	Progressive scan
Min.Illumination	Color : 0.1Lux (1/30sec, F1.2, 50IRE), 0.0017Lux (2sec, F1.2, 50IRE), 0.03Lux (F1.2, 30IRE) B/W : 0.01Lux (1/30sec, F1.2, 50IRE), 0.002Lux (F1.2, 30IRE)
S/N RATIO	50dB
Video Output	CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation DIP connector type
Focal Lenght (Zoom Ratio)	3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio	F1.2
Angular Field of View	H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21.0°(Tele)
Min. Object Distance	0.5m (1.64ft)
Focus Control	Simple focus (Motorized V/F) / Manual Remote control via network, Button control (Manual, Simple focus)
Lens Type	DC auto iris
Mount Type	Board type
Pan Range	0° ~ 354°
Tilt Range	0° ~ 67°
Rotate Range	0° ~ 355°
Camera Title	Off / On (Displayed up to 45 characters)
Day/Night	Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC
Wide Dynamic Range	120dB
Contrast Enhancement	SSDR (Off / On)
Noise Reduction	SSNR III (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
Defog	Off / Auto / Manual
Motion Detection	Off / On (4ea 4 points polygonal zones)
Privasi masking	Off / On (32 zones with 4 points of polygonal)
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Flip / Mirror	Off / On
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input, Network disconnection
Alarm Events	File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers), External output
Ethernet	RJ-45 (10/100BASE-T)
Video Compression	H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution	1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate	H.264 : Max. 60fps at all resolutions MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
Video Quality Adjustment	H.264 : Compression level, Target bitrate level control MJPEG : Quality level control
Bitrate Control	H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
Audio Input	Selectable (Mic in / Line in), Max output level : 1 Vrms Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Output	Line out (3.5mm stereo mini jack)
Audio Compression	G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Bi-directional audio
IP	IPv4, IPv6
Protocol Support	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	15 users at unicast mode
Edge Storage	SD/SDHC/SDXC Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
Application Programming Interface	ONVIF profile S, HTTP API (SUNAPI) 2.0, SVNP 1.2
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer	Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 Supported Browser : Microsoft Internet Explorer (Ver. 11 ~ 8) Mozilla Firefox (Ver. 19 ~9) * Windows only Google Chrome (Ver. 25 ~ 15) * Windows only Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software	SmartViewer, SSM
Operating Temperature / Humidity	-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Input Voltage / Current	12V DC, PoE (IEEE802.3af class 3)
Power Consumption (±10%)	Max. 9.0W (12V DC), Max. 11.0W (PoE, Class3)
Color / Material	Ivory / Plastic
Dimensions (mm)	Ø132.1 x 107.6mm (Ø5.2" x 4.24")
Weight	505g (1.11 lb)
