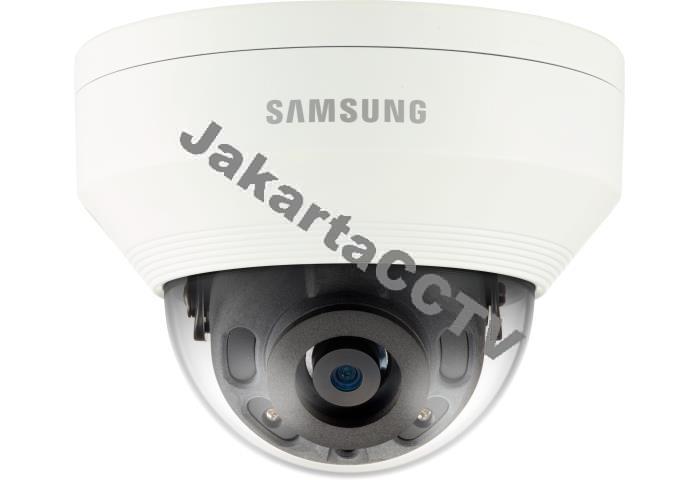

SAMSUNG QNV-7020RP

tidak termasuk pengiriman

• Max. 4megapixel resolution
• Built-in 3.6mm fixed lens
• Max. 20fps@4M, Max. 30fps@under 2M (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• micro SD/SDHC/SDXC memory slot (Max. 128GB), PoE / 12V DC
• IR viewable length 25m
• Hallway view, WiseStream support, IP66, IK10
• LDC support (Lens Distortion Correction)

Qty:

Overview
Contact Us

Jual IP Camera murah, SAMSUNG HANWHA TECHWIN QNV-7020RP CCTV, yang bisa anda beli sekarang dari JakartaCCTV dengan harga kompetitif dan terjangkau. IP Kamera dome IR HANWHA ini dilengkapi dengan lensa 3.6 mm yang mampu menangkap gambar & video dengan resolusi hingga 4MP, dan menstreamingnya pada berbagai output. Lensa ini dilindungi dalam casing anti air IP66 & anti pencurian / anti pengrusakan IK10 yang dikombinasikan dengan IR LED yang sanggup memantau sinar infra merah yang dipancarkan oleh objek dalam kegelapan total hingga jarak 25m di sekitar kamera.

Kamera ini cocok untuk penempatan di area outdoor karena diperlengkapi dengan tampering detection yang dapat mendeteksi ketika kamera diganggu, motion detection yang dapat mendeteksi dan merekam pergerakan yang tidak biasanya, defocus detection yang dapat mendeteksi ketika kamera sedang kehilangan fokus serta berbagai fitur cerdik lainnya.

Di samping itu kamera ini juga mendukung Lens Distortion Correction yang dapat memperbaiki distorsi yang disebabkan oleh lensa kamera, hallway view mode yang dapat mengganti aspek rasio untuk pemantauan lebih optimal pada area vertikal seperti koridor, terowongan dsb., PoE (Power Over Ethernet), on board storage melalui Micro SD Slot 128GB, dan teknologi WiseStream yang dapat mengkompress data hingga 75% untuk efisiensi penyimpanan dan bandwidth.

FITUR & FUNGSI SAMSUNG QNV-7020RP

Max. 4megapixel resolution
Built-in 3.6mm fixed lens
Max. 20fps@4M, Max. 30fps@under 2M (H.265/H.264)
H.265, H.264, MJPEG codec supported, Multiple streaming
Motion detection, Tampering, Defocus detection
micro SD/SDHC/SDXC memory slot (Max. 128GB), PoE / 12V DC
IR viewable length 25m
Hallway view, WiseStream support, IP66, IK10
LDC support (Lens Distortion Correction)

Hubungi kami sekarang untuk mendapatkan penawaran terbaik dengan harga distributor yang murah untuk IP Cam HANWHA QNV-7020RP ini yang disertai dengan garansi resmi 2 tahun dari distributor HANWHA TECHWIN di Indonesia. Kami, JakartaCCTV akan dengan senang hati membimbing dan membantu anda memilih IP Kamera SAMSUNG atau paket CCTV lainnya yang paling cocok untuk kebutuhan anda serta memberikan penawaran untuk jasa pasang CCTV & proses settingnya.

VIDEO
Imaging Device	1/3" 4M CMOS
Total Pixels	2,720(H) x 1,536(V)
Effective Pixels	2,688(H) x 1,520(V)
Scanning System	Progressive
Min. Illumination	Color : 0.4Lux B/W : 0Lux (IR LED on)
LENS
Focal Length (Zoom Ratio)	3.6mm fixed
Max. Aperture Ratio	F2.2
Angular Field of View	H : 81.0° / V : 45.0° / D : 95.0°
Lens Type	Fixed
Mount Type	Board type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	0° ~ 350° / 0° ~ 67° / 0° ~ 355°
OPERATIONAL
IR Viewable Length	25m (82.02ft)
Camera Title	Off / On (Displayed up to 20 characters per line) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night	True Day & Night
Backlight Compensation	Off / BLC / WDR
Wide Dynamic Range	120dB
Digital Noise Reduction	SSNR (Off / On)
Motion Detection	Off / On (4ea polygonal zones)
Privacy Masking	Off / On (6ea rectangular zones)
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens Distortion Correction)	Off / On (5 levels with min / max)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker
Flip / Mirror	Flip / Mirror / Hallway view
Intelligent Video Analytics	Motion detection with metadata, Tampering, Defocus detection
Alarm I/O	Input 1 / Output 1
Alarm Triggers	Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection
Alarm Events	File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
Pixel Counter	Support (Plug-in viewer only)
NETWORK
Ethernet	RJ-45 (10/100BASE-T )
Video Compression Format	H.265, H.264, MJPEG
Resolution	2592 x 1520, 2560 x 1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265/H.264 : Max 20fps at 4M, Max 30fps at under 2M MJPEG : Max 15fps
Smart Codec	WiseStream
Video Quality Adjustment	H.265/H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method	H.265/H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 3 profiles)
Audio I/O	Line in
Audio Compression Format	G.711 u-law / G.726 selectable G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Uni-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	6 users at unicast mode
Edge Storage	micro SD/SDHC/SDXC max. 128G, NAS - Motion images recorded in the SD memory card can be downloaded - Manual recording at local PC
Application Programming Interface	ONVIF Profile S/G, SUNAPI (HTTP API)
Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungary, Greek
Web Viewer	Supported OS : Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11 Non-plugin Webviewer - Supported Browser : Google Chrome 47, MS Edge 20 - Support Codec : - Video : H.264, MJPEG (Max. 1M 15fps) - Audio : G.711 Plug-in Webviewer Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
Central Management Software	SmartViewer
ENVIRONMENTAL
operating Temperature / Humidity	-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C (-4°F)
Storage Temperature / Humidity	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection	IP66
Vandal Resistance	IK10
ELECTRICAL
Input Voltage / Current	PoE (IEEE802.3af, Class3) / 12V DC
Power Consumption	Max. 6.8W (PoE), Max. 5.7W (12V DC)
MECHANICAL
Color / Material	Ivory / Metal
Dimensions (WxHxD)	Ø120.3 x 91.7mm (Ø4.74" x 3.61")
Weight	490g (1.08 lb)
