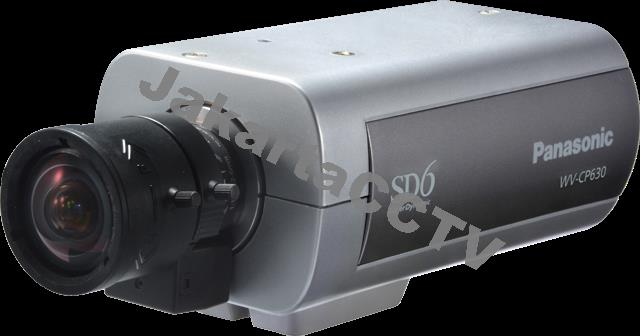

PANASONIC WV-CP630/G

tidak termasuk pengiriman

• Super Dynamic 6 delivers Superior image by fusion of Super Dynamic and ABS (Adaptive Black Stretch)
• High resolution : 700 TV lines typical
• High sensitivity with Day/Night function: 0.08 lx (Color), 0.008 lx (B/W) at F1.4. IR cut filter switches on/off to enhance the sensitivity in B/W mode.
• ABF (Auto Back Focus) ensures easy installation and stable focus in both color and B/W modes.
• 3-dimensional color conversion function for natural color reproduction even in lower color temperature situation
• Adaptive Digital Noise Reduction: Integration of 2D-DNR and 3D-DNR ensures noise reduction in various conditions.
• Electronic sensitivity enhancement : Auto (Up to 32x) / Fix (Up to 512x)
• Electronic shutter from 1/100 (NTSC), 1/120 (PAL) to 1/12,000 sec.
• Digital zoom : Up to 2x
• Alarm input and alarm output terminals
• Auto Image Stabilizer for applications where vibration or wind is a concern
• Internal / Line-lock / Multiplexed Vertical Drive (VD2)* synchronization
• Over the coaxial cable data communication
• 16 alphanumerics camera title display
• Multi language : English, French, Italian, Spanish, German, Russian, Portuguese, Japanese

Qty:

Overview
Contact Us

Jual Analog HD Camera murah, PANASONIC WV-CP630/G CCTV, yang bisa anda beli sekarang dari JakartaCCTV dengan harga kompetitif dan terjangkau. Kamera AHD PANASONIC ini menggunakan fitur teknologi Super Dynamic 6 yang memiliki jangkauan dynamis (jangkauan antara intensitas minimum dan maksimum cahaya) 160x lebih luas dibandingkan dengan kamera konvensional. Kamera ini dilengkapi dengan sensor bersensitivitas tinggi beserta dengan fungsi Day/Night yang menggunakan filter IR cut yang dapat menampilkan image berwarna pada siang hari dan secara otomatis beralih ke image monochrome pada saat suasana berangsur gelap dapat menyesuaikan warna pada siang maupun malam hari yang dikombinasikan dengan fungsi ABS (Adaptive Black Stretch) yang dapat meningkatkan visual pada area yang gelap tanpa mengurangi kualitas gambar pada area yang terang.

Selain itu kamera ini juga mendukung teknologi 3D DNR yang bisa mengeliminasi gangguan pada gambar seperti gambar yang blur pada saat objek bergerak atau pada saat mengambil video pada kondisi pencahayaan yang rendah dengan menganalisa single frame pada gambar secara individu untuk membedakan pixel yang mungkin mengganggu, serta auto image stabilizer yang digunakan ketika kamera dipengaruhi oleh getaran dari luar seperti angin yang kencang ataupun truk yang lewat.

Untuk pemasangan yang lebih mudah, kamera ini juga disertai ABF (Auto Back Focus) yang dapat menjaga fokus gambar pada kondisi pencahayaan yang berubah.

FUNGSI & FITUR PANASONIC WV-CP630/G

Super Dynamic 6 delivers Superior image by fusion of Super Dynamic and ABS (Adaptive Black Stretch)
High resolution : 700 TV lines typical
High sensitivity with Day/Night function: 0.08 lx (Color), 0.008 lx (B/W) at F1.4. IR cut filter switches on/off to enhance the sensitivity in B/W mode.
ABF (Auto Back Focus) ensures easy installation and stable focus in both color and B/W modes.
3-dimensional color conversion function for natural color reproduction even in lower color temperature situation
Adaptive Digital Noise Reduction: Integration of 2D-DNR and 3D-DNR ensures noise reduction in various conditions.
Electronic sensitivity enhancement : Auto (Up to 32x) / Fix (Up to 512x)
Electronic shutter from 1/100 (NTSC), 1/120 (PAL) to 1/12,000 sec.
Digital zoom : Up to 2x
Alarm input and alarm output terminals
Auto Image Stabilizer for applications where vibration or wind is a concern
Internal / Line-lock / Multiplexed Vertical Drive (VD2)* synchronization
Over the coaxial cable data communication
16 alphanumerics camera title display
Multi language : English, French, Italian, Spanish, German, Russian, Portuguese, Japanese

Setiap pembelian produk AHD Cam PANASONIC anda akan mendapatkan garansi resmi 2 tahun dari distributor PANASONIC di Indonesia. Jadi, belilah AHD Camera PANASONIC WV-CP630/G CCTV ini sekarang dari kami, JakartaCCTV yang juga menawarkan tips yang bermanfaat dalam membeli CCTV, jasa pemasangan dan setting CCTV serta paket CCTV lainnya dengan harga distributor yang murah.

Note : Tidak termasuk lensa

Camera	Image Sensor	1/3 type interline transfer CCD
	Effective Pixels	976 (H) x 582 (V)
	Scanning Mode	2:1 interlace scan
	Scanning Area	4.8 (H) x 3.6 (V) mm {3/16 inches (H) × 5/32 inches (V)
	Scanning Frequency	Horizontal: 15.625 kHz Vertical: 50.00 Hz
	Scanning Line	625 lines
	Horizontal Resolution	700 TV lines
	Minimum Illumination	Color : 0.08 lx (SENS UP : OFF), 0.003 lx* (SENS UP : 32x) at F1.4 B/W : 0.008 lx (SENS UP : OFF), 0.0003 lx* (SENS UP : 32x) at F1.4
	Signal-to-Noise Ratio	52 dB (AGC OFF, Weight ON)
	White Balance	AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
	Light Control	ALC / ALC+ / ELC
	AGC	ON (HIGH / MID / LOW) / OFF
	Super Dynamic	ON / OFF
	Dynamic Range	54 dB typical (Super Dynamic ON)
	Electronic Shutter	OFF (1/50), 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000, 1/12,000 s
	Electronic Sensitivity UP	OFF / AUTO (2x, 4x, 6x, 10x, 16x, 32x) / FIX (2x, 4x, 6x, 10x, 16x, 32x, 64x, 128x, 256x, 512x)
	Digital Noise Reduction	LOW / HIGH
	Day & Night	AUTO1 / AUTO2 / ON / OFF
	Electronic zoom	ON (up to 2x) / OFF
	Scene File	2 patterns
	Video Motion Detection	OFF / MOTION DET / SCENE CHANGE
	Privacy Zone	ON(1) / ON(2) / OFF
	Auto Image Stabilizer	ON / OFF
	Camera Title	English letter, numbers and symbols : up to 16 characters.
	Lens Mount	CS-mount
	ALC lens drive	DC drive
	Auto back focus	ABF / MANUAL / switching between color and BW interlocking
	Synchronization	Internal (INT), Multiplexed Vertical Drive (VD2)**, Line-Lock (LL)
	Upside-down	ON / OFF
	Lens distortion correction	0 to 255
Input / Output	Video Output	1.0 V [P-P] / PAL composite 75 / BNC Connector Multiplexed VD2 and control data capable
Input / Output	External I/O Terminals	ALARM IN : 1 (OFF / ALARM / VMD PERMIT / BW) ALARM OUT : 1 (OFF / ALARM / BW)
General	Setup Method	OSD setup menu
	Language	English, Russian (For setup menu and camera title), German, French, Italian, Spanish,Portuguese (For setup menu), Japanese (Only for camera title. Setup menu is in English.)
	Safty/EMC Standard	CE (EN60065, EN55022 ClassB, EN55024)
	Power Source and Power Consumption	220 ~ 240 V AC 50 Hz, 2.8 W
	Ambient Operating Temperature	–10 C ~ +50 C (14 F ~ 122 F)
	Ambient Operating Humidity	Less than 90 %
	Dimensions	75 mm (W) x 65 mm (H) x 132.5 mm (D) {2-15/16" (W) x 2-9/16" (H) x 5-7/32" (D)}
	Mass (approx.)	430 g {0.95 lbs.} (without power cord)
