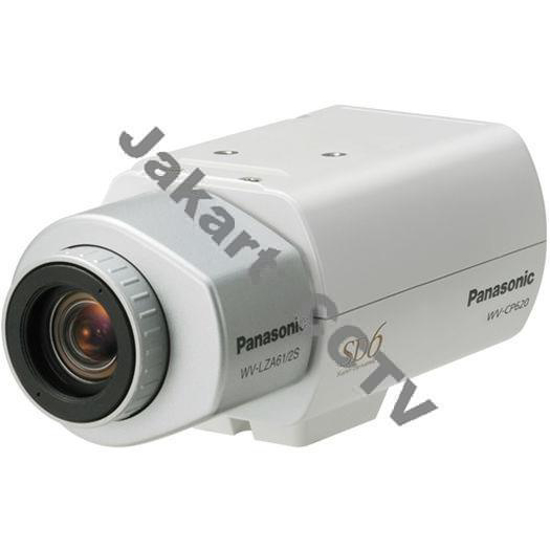

PANASONIC WV-CP620/G

tidak termasuk pengiriman

• Super Dynamic 6 technology delivers 160x wider dynamic range compared to conventional cameras.
• High resolution: 650 TV lines
• High sensitivity with Day/Night function: 0.08 lx (Color), 0.008 lx (B/W) at F1.4. IR cut filter switches on/off to enhance the sensitivity ni B/W mode.
• ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area.
• Focus Assist ensures easy installation.
• Various adjustment features including ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
• 16 axis matrix color compensation function enables wider range of natural color adjustment.
• 3-dimensional color conversion function for natural color reproduction even in lower color temperature situation
• Adaptive Digital Noise Reduction: Integration of 2D-DNR and 3D-DNR ensures noise reduction in various conditions.
• Electronic sensitivity enhancement: Auto (Up to 32x) / Manual (Up to 512x)
• Electronic shutter from 1/120 to 1/120,000 sec.
• Digital zoom: Up to 2x
• Auto Image Stabilizer for applications where vibration or wind is a concern
• Internal synchronization
• Over the coaxial cable data communication
• 16 alphanumerics camera title display
• Multi language: English, French, Italian, Spanish, German, Russian, Chinese, Japanese
• On screen display menu
• ELC mode for easier lens adjustment upon installation
• Smart look fits for various applications such as shopping mall, hotels and hospitals.

Qty:

Overview
Contact Us

Jual Analog HD Camera murah, PANASONIC WV-CP620/G CCTV, yang bisa anda beli sekarang dari JakartaCCTV dengan harga kompetitif dan terjangkau. Kamera AHD compact PANASONIC ini menggunakan fitur teknologi Super Dynamic 6 yang memiliki jangkauan dynamis (jangkauan antara intensitas minimum dan maksimum cahaya) 160x lebih luas dibandingkan dengan kamera konvensional. Kamera ini dilengkapi dengan sensor bersensitivitas tinggi beserta dengan fungsi Day/Night yang menggunakan filter IR cut yang dapat menampilkan image berwarna pada siang hari dan secara otomatis beralih ke image monochrome pada saat suasana berangsur gelap dapat menyesuaikan warna pada siang maupun malam hari yang dikombinasikan dengan fungsi ABS (Adaptive Black Stretch) yang dapat meningkatkan visual pada area yang gelap tanpa mengurangi kualitas gambar pada area yang terang.

Selain itu kamera ini juga mendukung ATW (Auto Tracing White Balance) yang mengijinkan kamera untuk menyesuaikan corak warna secara otomatis untuk memastikan warna agar terlihat alami dan mirip dengan warna yang anda lihat dengan mata anda sendiri ketika merekam suasana di sekitar, dan teknologi 3D DNR yang bisa mengeliminasi gangguan pada gambar seperti gambar yang blur pada saat objek bergerak atau pada saat mengambil video pada kondisi pencahayaan yang rendah dengan menganalisa single frame pada gambar secara individu untuk membedakan pixel yang mungkin mengganggu.

Untuk pemasangan yang lebih mudah, kamera ini juga disertai focus assist yang memungkinkan kamera untuk fokus lebih mudah pada target tanpa memperhitungkan posisi kamera dan juga berpenampilan pintar yang membuatnya cocok untuk penempatan di area indoor seperti shopping mall, hotel, dan rumah sakit.

FUNGSI & FITUR PANASONIC WV-CP620/G

Super Dynamic 6 technology delivers 160x wider dynamic range compared to conventional cameras.
High resolution: 650 TV lines
High sensitivity with Day/Night function: 0.08 lx (Color), 0.008 lx (B/W) at F1.4. IR cut filter switches on/off to enhance the sensitivity ni B/W mode.
ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area.
Focus Assist ensures easy installation.
Various adjustment features including ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
16 axis matrix color compensation function enables wider range of natural color adjustment.
3-dimensional color conversion function for natural color reproduction even in lower color temperature situation
Adaptive Digital Noise Reduction: Integration of 2D-DNR and 3D-DNR ensures noise reduction in various conditions.
Electronic sensitivity enhancement: Auto (Up to 32x) / Manual (Up to 512x)
Electronic shutter from 1/120 to 1/120,000 sec.
Digital zoom: Up to 2x
Auto Image Stabilizer for applications where vibration or wind is a concern
Internal synchronization
Over the coaxial cable data communication
16 alphanumerics camera title display
Multi language: English, French, Italian, Spanish, German, Russian, Chinese, Japanese
On screen display menu
ELC mode for easier lens adjustment upon installation
Smart look fits for various applications such as shopping mall, hotels and hospitals.

Setiap pembelian produk AHD Cam PANASONIC anda akan mendapatkan garansi resmi 2 tahun dari distributor PANASONIC di Indonesia. Jadi, belilah AHD Camera PANASONIC WV-CP620/G CCTV ini sekarang dari kami, JakartaCCTV yang juga menawarkan tips yang bermanfaat dalam membeli CCTV, jasa pemasangan dan setting CCTV serta paket CCTV lainnya dengan harga distributor yang murah.

Note : Tidak termasuk lensa

Camera	Image Sensor	1/3 type interline transfer CCD
	Effective Pixels	976 (H) x 582 (V)
	Scanning Mode	2:1 interlace
	Scanning Area	4.8 (H) x 3.6 (V) mm
	Scanning Frequency	Horizontal: 15.625 kHz Vertical: 50.00 Hz
	Horizontal Resolution	650 TV lines typ.
	Minimum Illumination	Color: 0.08 lx B/W: 0.008 lx
	Signal-to-Noise Ratio	52 dB (AGC: OFF)
	White Balance	AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6 ,000 K)
	Light Control	ALC/ALC+/ELC
	AGC	ON (LOW, MID, HIGH) / OFF
	Super Dynamic 6	ON / OFF
	Dynamic Range	54 dB typical (Super Dynamic 6 : ON)
	Electronic Shutter	OFF (1/50), 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/120000 (s)
	Electronic Sensitivity UP	32x max. AUTO, 512x max. FIX
	Day & Night	(IR) AUTO1/AUTO2/ON/OFF
	Digital Noise Reduction	High or Low
	Scene File	2 patterns
	Video Motion Detection	OFF / MOTION DET / SCENE CHANGE
	Privacy Zone	ON(1) / ON(2) / OFF
	Image Stabilizer	ON / OFF
	Camera Title	16 alphanumeric characters
	Synchronization	Internal (INT)
Input / Output	Video Output	1.0 V [p-p] / PAL composite 75 Ω
	Controller Interface	Coaxial Multiplex System
	External I/O Terminals	Alarm IN 1pc, Alarm OUT 1pc
General	Setup Method	OSD setup menu
	Language	English, Russian, German, French, Italian, Spanish, Chinese, Japanese
	Safty/EMC Standard	CE (EN60065, EN55022 ClassB, EN55024), GOST (GOST R 51558)
	Power Source and Power Consumption	220 V - 240 V AC 50/60 Hz 2.8 W
	Ambient Operating Temperature	–10 °C ~ +50 °C (14 °F ~ 122 °F)
	Ambient Operating Humidity	90 % or less (without condensation)
	Dimensions	101 mm (L) × 72 mm (W) × 55 mm (H) {3-31/32 inches (L) × 2-27/32 inches(W) × 2-5/32 inches (H)}
	Mass (approx.)	Approx.190 g (Power cord excluded)
	Finish	ABS resin / White Painting
