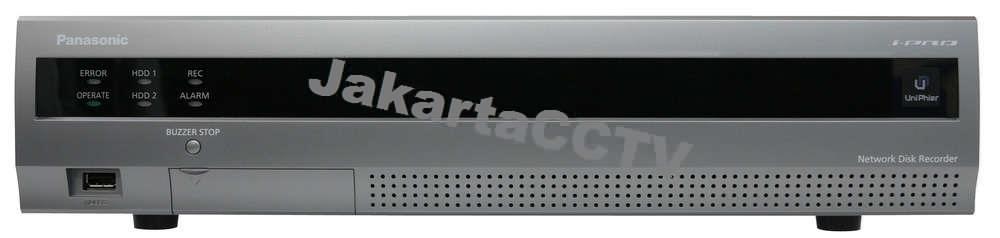

Supported Cameras
|
Compatible vendor |
Panasonic i-PRO series Network cameras Onvif NVT conformant camera and encoder camera |
| Supported Image Format |
H.264, MJPEG |
| Supported Image Resolution |
Aspect ratio [4:3] : QXGA (2048x1536), SXVGA (1,280 x 960), SVGA (800 x 600), VGA (640 x 480), QVGA (320 x 240) Aspect ratio [16:9]:1,920 x 1,080, 1,280 x 720, 640 x 360, 320 x 180)* Depending on the camera |
| Supported Audio Format |
G.726 (ADPCM) 32 kbps |
| Maximum Number of Cameras |
MAX. 32 *1 (Default Number of Cameras : 9) |
|
Recording
|
Recording Mode |
Event, Schedule |
| Pre-alarm Recording |
Up to 15 seconds (Up to 10 seconds at 1,920 x 1080 resolution and up to 5 seconds at QXGA) |
| Scheduled Recording Mode |
4 programs, 3 time zones/day, Independent setup for each day of the week |
| Frame Rate/Camera |
Up to 60ips (Depending on the Camera) |
|
Main Unit Functions
|
Camera Control |
Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset, Auto Back Focus |
| Multiscreen Mode |
MainMonitor 4/16 split screen display, 4/6/9/12/16/24/32* split screen display on a full screen. (* 24-/32-multiscreen is available when sub monitor isn’t on.) SubMonitor 1 screen sequence / 4 split screen sequence / 9(16) split screen display |
| Playback Control |
PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Go to Date, Go to Last (30 s) |
| Search Mode |
Search criteria: Time date, Playback by designating a timeline, VMD |
| Copy |
Recorded data of selected cameras and time date range can be copied to the SD (SDHC) card and USB media. |
| Camera Title |
Up to 14 characters |
| Clock Display |
Time: 12H/24H, Date: 5 formats |
| Digital Zoom |
Live: 2x, 4x, 8x (only for 1-screen or 4-screen) Play: 2x, 4x, 8x |
| System Log |
Operator access (100), Network error (100), Error (1,000), Event (750) |
| System Setup |
Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Japanese |
| 360 Camera Dewarp |
Only 1ch display mode. |
| re-encoding |
1Client |
| Real Time Face Matching |
Camera 1Ch, 100 registered face images |
|
Browser GUI
|
Camera Control |
Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset |
| Playback Control |
REC, PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Go to Date, Go to Last (30 s) |
| Search Mode |
Search criteria: Time date, Event type, VMD, Camera number |
| Display Mode |
1 / 4 screen |
| Image Download |
Recorded data of selected camera and time range can be downloaded to a PC. Viewer software can be downloaded separately. |
| SD Memory Data Download |
N/A |
| Copy |
Recorded data of selected cameras and time date range can be copied to the SD (SDHC) card. |
| Camera Title |
Up to 14 characters |
| Clock Display |
On the browser. Time: 12H/24H, Date: 5 formats |
| Digital Zoom |
Live/Play: 2x, 4x (only for 1-screen) |
| System Log |
Operator access (100), Network error (100), Error (1,000), Event (750) |
| GUI Language |
English, French, Italian, Spanish, German, Russian, Portuguese, Japanese |
| Supported OS |
Microsoft® Windows® 8.1, Microsoft® Windows® 7, Microsoft® Windows Vista® |
| Supported Browser |
Windows® Internet Explorer® 11 (32 bit), Windows® Internet Explorer® 10 (32 bit), Windows® Internet Explorer® 9 (32 bit), Windows® Internet Explorer® 8 (32 bit), Windows® Internet Explorer® 7 (32 bit) |
| Required PC |
CPU: Intel® Core™ i7-920 or faster, RAM: 3 GB or more, VRAM: 128 MB or more (Min. 64 MB), Microsoft® DirectX® 9.0c or later |
|
Alarm/ Event
|
Alarm Source |
9x Terminal inputs, 32x Camera alarms (Panasonic Alarm Protocol), 128x Command alarms |
| Event Mode |
Off / On |
| Alarm Action |
Alarm recording, e-mail notification, Alarm message, Camera positioning, Terminal output, Panasonic alarm protocol output, Buzzer, Indicator |
| Alarm Control |
Reset |
| Event Log |
750 |
|
Input / Output
|
Spot Output Connector |
1x 1 V [p-p] / 75 Ω (BNC) |
| Monitor (HDMI) Connector |
2x HDMI 1920x1080p /60Hz, 1920x1080p /50Hz, 1920x1080i /60Hz, 1920x1080i /50Hz, 720x576p /50Hz, 720x480p /60Hz |
| Audio Output Connector |
1x ?10 dBv, 600 Ω, Unbalanced (RCA) |
| Alarm/Control Connector (25pin D-sub) - Alarm |
Alarm input 1 ~ 9*2, Alarm output*3, Alarm reset input*2 |
| Alarm/Control Connector (25pin D-sub) - Control |
Time adjustment input*2, +5 V output*4 |
| Alarm/Control Connector (25pin D-sub) - Error/Warning |
Network error output*3, HDD error output*3, Camera error output*3, Recorder error output*3, Recording error output*3 |
| Mouse Connection Port |
1x |
| Network Port |
2x 10BASE-T / 100BASE-TX / 1000BASE-T (RJ-45) |
| USB Memory |
Only USB2.0 Memory |
| SDHC/SD Memory Card Slot |
SDHC/SD memory cards applicable (miniSD cards and microSD cards not applicable) |
| External Storage |
2x HDE400 |
|
Network
|
Network Interface |
2x 10BASE-T / 100BASE-TX / 1000BASE-T (RJ-45) |
| Maximum Recording Rate |
128 Mbps or less |
| Maximum Bandwidth |
Total 160 Mbps or less |
| Supported Protocol |
TCP/IP, UDP/IP, HTTP, FTP, SMTP, DNS, NTP, SNMP, RTP |
| E-mail |
Upon Alarm or Warning |
| No. of Simultaneous Users |
8 or fewer |
| User Registration |
Up to 16 users |
| User Level |
3 Levels (Programmable) |
| Partitioning |
User level - Camera (View & Control, No Access) |
| Security Method |
User authentication (ID and Password), Alteration detection |
|
Other Functions
|
Time Synchronization |
Terminal (Slave), NTP (Server/Client) |
| Summer Time |
User definable (using menu setup) |
| Remote Monitoring on Smartphone/Tablet |
1Client. *Panasonic Security Viewer v.2.1 or later is required on smartphone/tablet PC. |
|
HDD
|
Type |
WJ-NV300: 8.89 cm (3.5 inch) Serial ATA HDD, Up to 2x HDDs can be installed. |
| Maximum Capacity |
4TB*5 |
| RAID |
Single, RAID1, 5*6, 6*6 |
|
Viewer Software
|
Playback Control |
Play, Rev Play, Pause, FF, FR, Prev Record, Next Record, Prev Image, Next Image |
| Additional Functions |
Alteration detection, Save as JPEG, Two times zoom, Print, Copy |
| Supported OS, Language |
Language of the software will be English |
|
General Specifications
|
Safety/EMC Standard |
CE (EN60065, EN55032 ClassB, EN55024), EAC |
| Power Source |
220 V - 240 V AC 50 Hz/60 Hz (PAL) |
| Power Consumption |
approx. 55 W (with 4TBHDDx2) |
| Ambient Operating Temperature |
Main body: +5 °C ~ +45 °C (41 °F ~ 113 °F) Mouse (provided): +5 °C ~ +40 °C (41 °F ~ 104 °F) |
| Ambient Operating Humidity |
5 % ~ 90 % (without condensation) |
| Maximum Operating Altitude |
2,000 m (6,562 feet) above sea level |
| Dimensions |
420 mm (W) x 88 mm (H) x 300 mm (D) excluding rubber feet and projections |
| Mass (approx.) |
5.3 kg (11.70 lbs.) without HDD, 6.0 kg (13.25 lbs.) with 1 HDD, 6.7 kg (14.79 lbs.) with 2 HDDs |
|
Note
|
*1: Three Additional Camera Kits WJ-NVE30 are necessary.
*2: Non-voltage make contact input, 50 kΩ +5 V DC pull-up
*3: Open collector output, 24 V DC, 100 mA max.
*4: 200 mA max.
*5: Please check the following URL for the latest information.
< http://security.panasonic.com/pss/security/library/library.html >
*6: Hard Disk Extension Unit WJ-HDE400 is necessary. |
