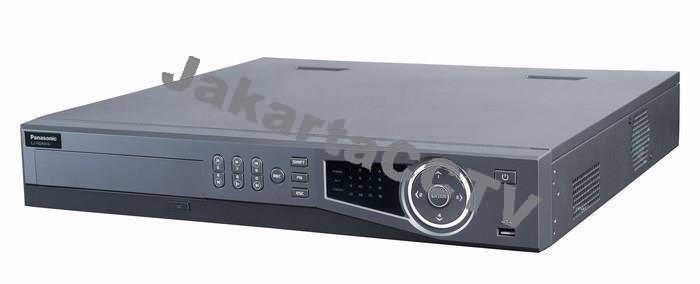

PANASONIC CJ-HDR416

tidak termasuk pengiriman

• 16 CH with 720p real-time recording playback and live view
• H.264 video encode
• 1/4/9/16 CH synchronous real time playback
• HDMI/ VGA/ TV simultaneous video output
• Support 4 SATA HDDs up to 24TB, 3 USB
• Digital Zoom in Live & Playback
• iPhone, iPad & Android

Qty:

Overview
Contact Us

Jual DVR murah, PANASONIC CJ-HDR416 yang bisa anda beli sekarang dari JakartaCCTV dengan harga yang terjangkau dan kompetitif. Digital Video Recorder PANASONIC seri ini menerima input dari 16 saluran kamera analog dan merekam video dengan resolusi frame hingga 720P. File yang direkam dapat diputar secara langsung di layar dengan 16 tampilan terbagi pada saat yang bersamaan dalam format HDMI / VGA / TV. Pengguna juga bisa memilih untuk menyimpan file yang terekam karena DVR ini dapat dipasang dengan 4 HDD internal (dengan kapasitas total hingga 24TB) dan memilik 3 USB Ports.

Selain itu pengguna juga dapat memanfaatkan fitur digital zoom yang tersedia pada DVR di saat perekaman langsung & pemutaran ulang, serta melakukan pemantauan secara mobile dengan menghubungkan DVR ini ke iPhone, iPad, dan Android.

FITUR & FUNGSI PANASONIC CJ-HDR416

16 CH with 720p real-time recording playback and live view
H.264 video encode
1/4/9/16 CH synchronous real time playback
HDMI/ VGA/ TV simultaneous video output
Support 4 SATA HDDs up to 24TB, 3 USB
Digital Zoom in Live & Playback
iPhone, iPad & Android

Selain garansi resmi selama 2 tahun dari distributor PANASONIC di Indonesia, anda juga akan mendapatkan tips yang aman dan berguna dalam memilih & membeli DVR PANASONIC yang sesuai dengan kebutuhan anda dengan harga distributor yang murah jika anda membeli produk ini dari kami, JakartaCCTV, yang juga menawarkan jasa pemasangan CCTV & setting CCTV. Jadi tunggu apalagi ? Hubungi kami sekarang juga untuk mendapatkan PANASONIC CJ-HDR416 Digital Video Recorder ini atau jika anda masih memiliki pertanyaan lebih lanjut mengenai produk ini atau paket CCTV kami lainnya.

Video/Audio IF
Video Input	16 CH, BNC
Type	HDCVI : 720p/ 1080p HDCVI Analog : NTSC/ PAL
Video Output	1 HDMI, 1 VGA, 1 TV
Audio Input	4 CH, BNC
Audio Output	1 CH, BNC
Two-way Talk	1 CH input, 1 CH output, BNC
Display
Output Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Multiscreen Mode	1/4/8/9/16
Privacy Masking	4 rectangular zones (each camera)
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video/ Audio Format
Video/Audio Compression	H.264/ G.711
Record Rate	Main Stream : 1080P (1~12/15fps)/ 720P/ 960H/ D1/ HD1/ 2CIF/ CIF (1~25/30fps) Extra Stream : CIF/ QCIF (1~25/30fps), D1 (1~12/15fps)
Bit Rate	48~4096Kb/s
Record Mode	Manual, Schedule (Regular (Continuous), MD), Stop
Record Interval	1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Alarm/ Event
Trigger Events	Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips
Video Detection	Motion Detection, MD Zones: 396 (22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback	1/4/9/16
Search Mode	Time/Date, MD & Exact search (accurate to second)
Playback Functions	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device/ eSATA Device/ Network
Network
Network Interface	RJ-45 port (10/100M/ 1000M)
Network Functions	HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access	128 users
Mobile Device	iPhone, iPad, Android
HDD
Type	4 SATA ports, up to 24TB
External Interface
USB Interface	3 ports (2 Rear), USB2.0
RS485 Camera Interface	1 port RS485 for PTZ control,1 port RS422 for Keyboard
General Specifications
Power Supply	AC 100~240 V, 50/60 Hz
Power Consumption	40W (without HDD)
Working Environment	-10°C~+55°C/ 10%~90%RH / 86~106kpa
Dimension(W×D×H)	1.5U, 440mm×416mm×68mm
Weight	6KG (without HDD)
