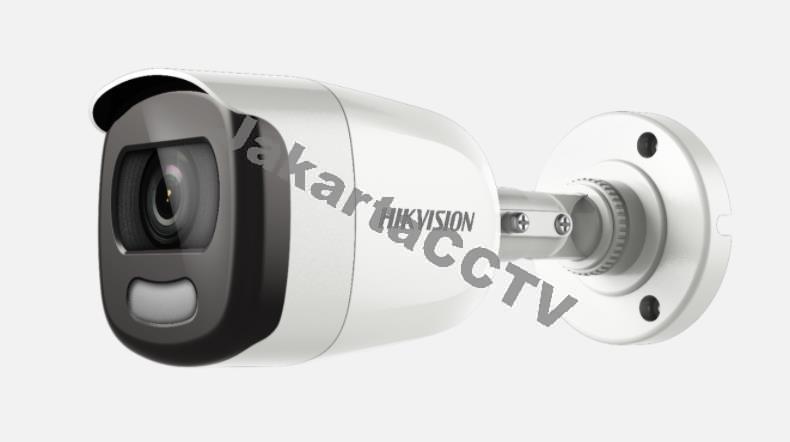

Hikvision DS-2CE10DFT-FC ColorVu Outdoor Camera 2MP

Spesifikasi Hikvision DS-2CE10DFT-FC ColorVu Outdoor Camera 2MP

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.0008 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
• Day & NightColor
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
• Signal SystemPAL/NTSC

Lens

• Lens Type3.6 mm, 6 mm fixed lens
• Focal Length & FOV3.6 mm, horizontal FOV: 83.0°, vertical FOV: 44.4°, diagonal FOV: 98.0° 6 mm, horizontal FOV: 51.0°, vertical FOV: 28.5°, diagonal FOV: 58.7°
• Lens MountM16


• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Mirror, Smart Light, Defective Pixel Correction
• Frame RateTVI: 1080p@30fps, 1080p@25fps AHD: 1080p@30fps, 1080p@30fps CVI: 1080p@30fps, 1080p@25fps CVBS: PAL/NTSC
• Wide Dynamic Range (WDR)≥120 dB
• Image EnhancementBLC,HLC
• White BalanceATW/MANUAL
• White LightAUTO/OFF
• AGCSupport

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS

General

• MaterialMetal
• Dimension181.4 mm × 70 mm × 68 mm (7.14" × 2.75" × 2.68")
• WeightApprox. 390 g (0.86 lb.)
• Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
• ConsumptionMax. 3 W
• IR RangeUp to 20 m

Approval

• ProtectionIP67
