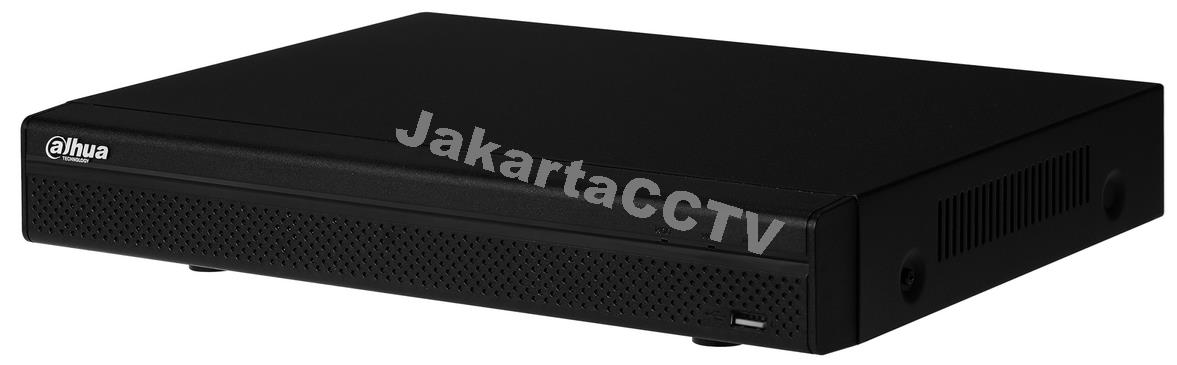

DAHUA NVR4104H

Rp 1.859.000

tidak termasuk pengiriman

• H.264+/H.264 codec decoding
• Max 80Mbps Incoming Bandwidth
• Up to 5MP Resolution for Preview and Playback
• HDMI/VGA simultaneous video output
• Support ANR technology to enhance the storage reliability when the network break down

Qty:

Overview
Contact Us

Jual DAHUA NVR4104H dengan harga murah, kompetitif dan terjangkau di JakartaCCTV. Network Video Recorder DAHUA seri Beneficio NVR4000 ini mampu merekam video dengan resolusi hingga 5MP pada kecepatan 80Mbps. Selama proses perekaman, NVR ini menerima audio input dari 1 saluran RCA port dan video input dari 4 saluran IP camera. File yang direkam bisa diputar ulang secara sinkron ke 4 channel pada saat yang bersamaan dan ditampilkan pada 1 format HDMI, dan 1 format VGA. File tsb pun lalu bisa disimpan ke 1 HDD SATA Port dengan kapasitas hingga 6 TB per disk, atau diback up ke perangkat eksternal melalui 2 USB Port atau ke jaringan melalui Ethernet Port yang tersedia pada NVR.

Selain itu, NVR DAHUA ini mendukung kontrol PTZ serta berbagai fitur lainnya yang bermanfaat seperti fungsi Smart Add yang membuat pemasangan sistem IP Camera semudah sistem analog tanpa harus mempertimbangkan apakah ada PoE switch yang tertanam pada NVR atau tidak, Teknologi ANR (Automatic Network Replenishment) di mana NVR akan merekam video ke SD card di dalam IP camera pada saat jaringan sedang down, lalu mentransfer kembali data tsb ke NVR ketika jaringan sudah kembali berfungsi, untuk menghindari kehilangan data pada saat jaringan bermasalah, fungsi P2P yang memungkinkan pemantauan di manapun & kapanpun, kecocokan dengan berbagai macam merek network camera serta kepatuhan secara resmi pada standard ONVIF, yang membuat perangkat ini sebuah tambahan yang penting dan serba guna bagi sistem pengawasan anda.

FITUR & FUNGSI DAHUA NVR4104H

H.264+/H.264 codec decoding
Max 80Mbps Incoming Bandwidth
Up to 5MP Resolution for Preview and Playback
HDMI/VGA simultaneous video output
Support ANR technology to enhance the storage reliability when the network break down

Network Video Recorder DAHUA NVR4104H ini hanya bisa anda dapatkan dengan harga distributor yang murah di JakartaCCTV, yang disertai dengan garansi resmi 2 tahun dari distributor DAHUA di Indonesia. Beli produk ini dari kami sekarang dan anda juga akan mendapatkan tips yang aman dan berguna dalam memilih, membeli, memasang, dan menyetting NVR DAHUA dan paket CCTV lainnya yang sesuai dengan kebutuhan anda. Jadi tunggu apa lagi ? Hubungi kami sekarang juga.

System
Main Processor	Dual-core embedded processor
Operating System	Embedded LINUX
Display
Interface	1 HDMI, 1 VGA
Resolution	1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
Multi-screen Display	1/4
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18),Video Loss and Camera Blank
Alarm input	N/A
Relay Output	N/A
Playback and Backup
Playback	1/4
Search Mode	Time /Date, MD and Exact Search (accurate to second), Smart search
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play,Next File, Previous File, Next Camera,Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode	USB Device/Network
Storage
Internal HDD	1 SATA III Port, Up to 6 TB capacity for each HDD
HDD Mode	Single
eSATA	N/A
Auxiliary Interface
USB	2 USB Ports (2 USB2.0)
RS232	N/A
RS485	N/A
Audio and Video
IP Camera Input	4 Channel
Two-way Talk	1 Channel Input, 1 Channel Output, RCA
Recording
Compression	H.264+/H.264/MJPEG
Resolution	5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
Record Rate	80Mbps
Bit Rate	16Kbps ~ 20Mbps Per Channel
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Stop
Record Interval	1 ~ 120 min (default: 60 min), Pre-record:1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network
Interface	1 RJ-45 Port (10/100Mbps)
Ethernet Port	1 Independent 100Mbps Ethernet Port
PoE	N/A
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF 2.4, CGI Conformant
Electrical
Power Supply	DC12V/2A
Power Consumption	<10W (Without HDD)
Environmental
Operating Conditions	-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions	-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions	Mini 1U, 325mm×251.3mm×55mm (12.8" x 9.9" x 2.2")
Net Weight	1.2kg (2.6 lb) (without HDD)
Gross Weight	2kg(4.4 lb)(without HDD)
Certifications
CE	EN55022, EN55024, EN50130-4, EN60950-1
FCC	Part 15 Subpart B, ANSI C63.4-2014
UL	UL60950-1+CAN/CSA C22.2 No.60950-1
