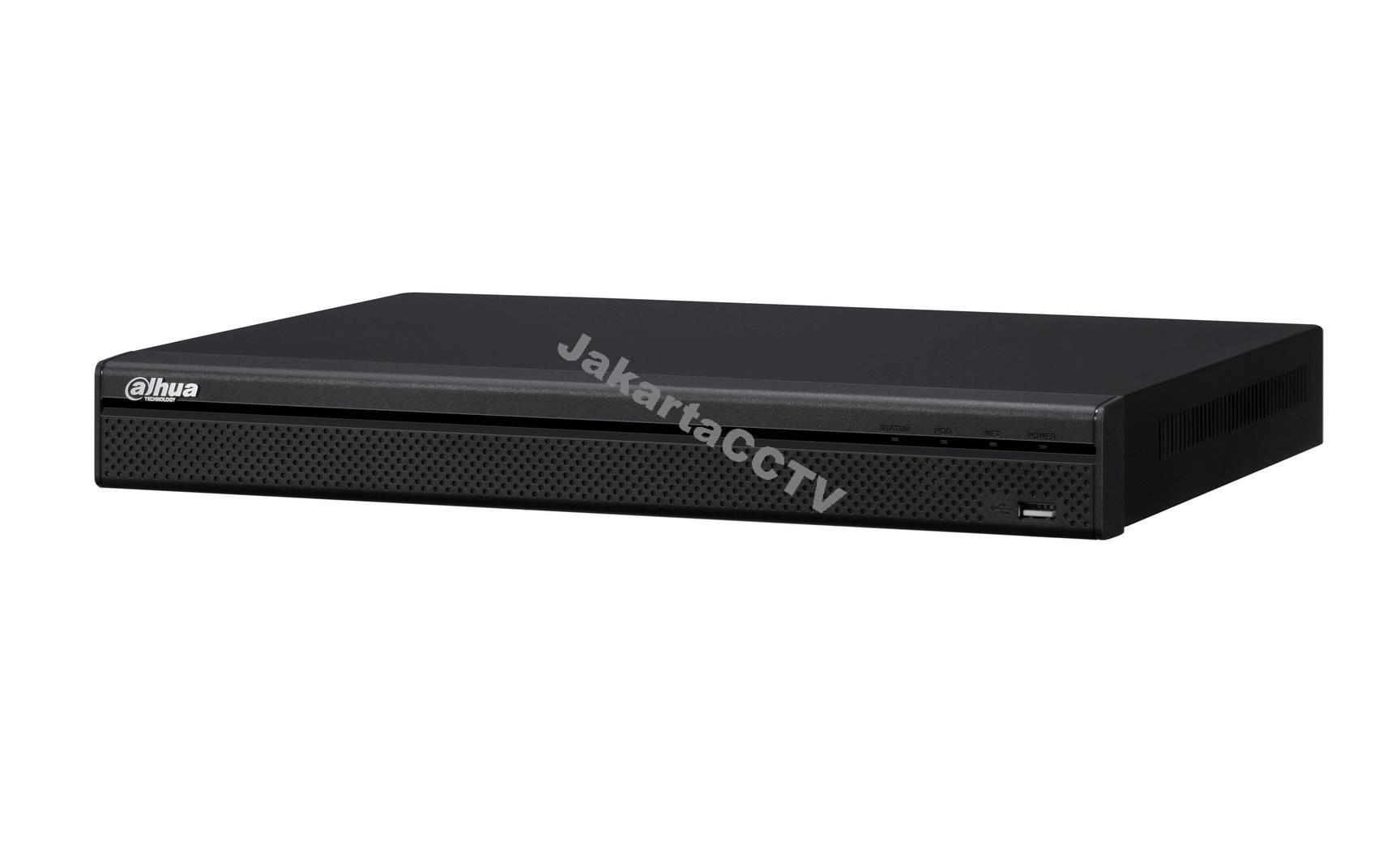

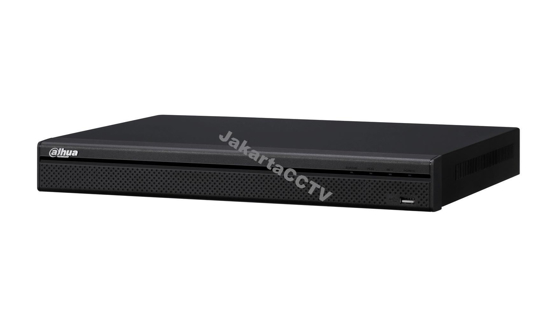

DAHUA HCVR4204A-S3

tidak termasuk pengiriman

• Support HDCVI/Analog/IP Video input
• H.264+/H.264 dual-stream video compression
• All channel 1080N/720P recording
• HDMI/VGA simultaneous video output
• 4 channels synchronous playback, GRID interface & smart search
• Support Multi-brand network cameras.
• ONVIF Version 2.4.1 conformance
• Support 2 SATA HDDs up to 12TB, 2 USB2.0
• 3D intelligent positioning with Dahua PTZ dome camera
• Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

Qty:

Overview
Contact Us

Jual DVR DAHUA HCVR4204A-S3 dengan harga murah, kompetitif dan terjangkau di JakartaCCTV. DVR (Digital Video Recorder) DAHUA seri HCVR4000 ini mampu menstreaming video dengan dua resolusi yang berbeda secara serentak dan merekamnya dengan resolusi hingga 1080N. DVR ini menerima audio input dari 4 saluran RCA port dan video input dari 4 saluran kamera analog, yang bisa dialihkan ke 4 saluran IP camera, dengan tambahan 1 saluran IP camera yang berdedikasi, yang berarti DVR ini mampu mensupport hingga 5 saluran IP kamera.

Video yang direkam bisa diputar ulang secara sinkron ke 4 channel pada saat yang bersamaan dan ditampilkan pada 1 format HDMI, dan 1 format VGA. File yang sudah direkam lalu bisa disimpan ke 2 HDD SATA Port dengan kapasitas hingga 6TB per disk, atau diback up ke perangkat eksternal melalui 2 USB Port atau back up ke jaringan melalui Ethernet Port yang tersedia pada DVR.

Selain dari fungsi perekaman, DVR ini juga memiliki 8 saluran alarm masuk yang bisa dihubungkan ke sensor eksternal seperti sensor pendeteksi gerakan infra merah, sensor pintu magnetis, sensor pendeteksi jendela/kaca pecah, sensor pendeteksi asap dll. Pengguna lalu bisa mengkonfigurasi dan menghubungkan DVR ke perangkat alarm agar bisa bereaksi and bertindak sepatutnya jika sensor sensor ini terpicu dengan 3 saluran alarm keluar (cth : membunyikan sirine, dsb.). Selain itu, DVR DAHUA ini mendukung PTZ control, berbagai macam merek network camera yang secara resmi mematuhi standard ONVIF, yang membuat perangkat ini sebuah tambahan yang penting dan serba guna bagi sistem pemantauan anda.

FITUR & FUNGSI DAHUA HCVR4204A-S3

Support HDCVI/Analog/IP Video input
H.264+/H.264 dual-stream video compression
All channel 1080N/720P recording
HDMI/VGA simultaneous video output
4 channels synchronous playback, GRID interface & smart search
Support Multi-brand network cameras.
ONVIF Version 2.4.1 conformance
Support 2 SATA HDDs up to 12TB, 2 USB2.0
3D intelligent positioning with Dahua PTZ dome camera
Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

Selain garansi resmi selama 2 tahun dari distributor DAHUA di Indonesia, anda juga akan mendapatkan tips yang aman dan berguna dalam memilih, membeli & memasang Digital Video Recorder DAHUA yang sesuai dengan kebutuhan anda dengan harga distributor yang murah jika anda membeli produk ini dari kami, JakartaCCTV. Jadi tunggu apalagi ? Hubungi kami sekarang untuk mendapatkan DVR DAHUA HCVR4204A-S3 ini atau jika anda masih memiliki pertanyaan lebih lanjut mengenai produk ini atau paket CCTV kami lainnya.

System
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Video
Input	4 channel, BNC
Standard	HDCVI : 1080P/720P HDCVI Camera Analog : NTSC/PAL IP : 4+1 up to 2Mp
Audio
Input	4 channel, RCA
Output	1 channel, RCA
Two-way Talk	Reuse audio input/output channel 1
Display
Interface	1 HDMI, 1 VGA
Resolution	1920× 1080, 1280× 1024, 1280× 720, 1024× 768
Display Split	1/4/6
Privacy Masking	4 rectangular zones (each camera)
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression	H.264/G.711
Resolution	1080N(960*1080)/720P(1280×720)/960H(960×576/960×480)/ D1(704×576/704×480)/HD1(352×576/352×480)/BCIF(704×288/704×240) CIF(352×288/352×240) / QCIF(176×144/176×120)
Record Rate	Main Stream : 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps) Extra Stream : CIF/QCIF(1~15fps)
Bit Rate	1~4096Kb/s
Record Mode	Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval	1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection	Motion Detection, MD Zones: 396(22× 18), Video Loss & Camera Blank
Alarm Input	8 channel
Relay Output	3 channel
Playback & Backup
Sync Playback	1/4
Search Mode	Time/Date, MD & Exact search (accurate to second)
Playback Functions	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device/Internal SATA burner/Network
Network
Ethernet	RJ-45 port (10/100M)
Network Functions	HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Storage
Internal HDD	2 SATA port, up to 12TB
Auxiliary Interface
USB Interface	2 ports (1 Rear), USB2.0
RS485	1 port, For PTZ Control
General
Power Supply	DC12V/4A
Power Consumption	15W(without HDD)
Working Environment	-10°C~+55°C / 10%~90%RH / 86~106kpa
Dimension (W× D× H)	1U, 375mm×285mm×55mm
Weight	2.35KG(without HDD)
