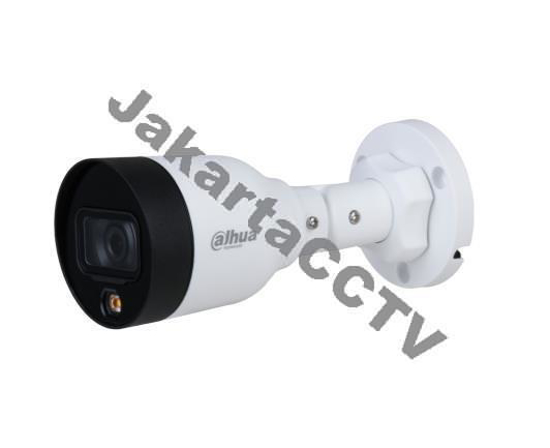

Dahua Full Color IPC-HFW1239S1-LED-S4 Bullet Camera

Spesifikasi Dahua Full Color IPC-HFW1239S1-LED-S4 Bullet Camera

Camera

• Image Sensor 1/2.7" 2Megapixel progressive CMOS
• Effective Pixels 1920 (H) × 1080 (V)
• ROM 16 MB
• RAM 64 MB
• Scanning System Progressive
• Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
• Min. Illumination 0.005 Lux @F1.6
• LED Distance 2.8 mm: 10 m (32.8ft) 3.6 mm: 15 m (49.2ft)
• LED On/Off Control Auto/Manual LEDs Number 1
• Pan/Tilt/Rotation Range Horizontal: 0°–360° Vertical: 0°–90° Rotation: 0°–360°

Lens

• Lens Type Fixed-focal
• Mount Type M12
• Focal Length 2.8 mm 3.6 mm
• Max. Aperture 2.8 mm: F1.6 3.6 mm: F1.6
• Field of View 2.8 mm: Pan 110° × Tilt 59° × Diagonal 132° 3.6 mm: Pan 91° × Tilt 48° × Diagonal 109°
• Iris Type Fixed Close
• Focus Distance 2.8 mm: 0.6 m (2.0 ft) 3.6 mm: 1.1 m (3.6 ft)

Video

• Video Compression H.265; H.264; H.264H; H.264B; MJPEG
• Smart Codec Yes
• Video Frame Rate Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)
• Stream Capability 2 streams
• Resolution 1080p (1920 × 1080); 1.3m (1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640× 480); CIF (352 × 288/352 × 240)
• Bit Rate Control CBR/VBR
• Video Bit Rate H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6400 Kbps
• Day/Night Color/B/W
• BLC Yes
• HLC Yes
• WDR DWDR
• White Balance Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control Auto/Manual\
• Noise Reduction 3D DNR
• Motion Detection OFF/ON (4 areas, rectangular)
• Region of Interest(RoI) Yes (4 areas)
• Smart Light Yes
• Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution.)
• Mirror Yes
• Privacy Masking 4 areas

Network

• Network RJ-45 (10/100 Base-T)
• Protocol IPv4; IPV6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; DDNS ;Multicast
• Interoperability ONVIF (Profile S); CGI; P2P; Genetec
• User/Host 20
• Edge Storage FTP; Dahua Cloud
• Browser IE Chrome Firefox
• Management Software Smart PSS; DSS; DMSS
• Mobile Phone IOS; Android

Certification

• Certifications CE-LVD: EN62368-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
• FCC: 47 CFR FCC Part 15, Subpart B

Power

• Power Supply 12V DC/PoE (802.3af)
• Power Consumption < 4.8W

Environment

• Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than ≤ 95%
• Storage Temperature -40°C to +60°C (-40°F to +140°F)
• Ingress Protection IP67

Structure

• Casing Metal + plastic
• Dimensions 162.6 mm × Φ70 mm (6.4" × Φ2.8")
• Net Weight 0.22 kg (0.4 lb)
• Gross Weight 0.34 kg (0.7 lb)
