Brand: CP Plus

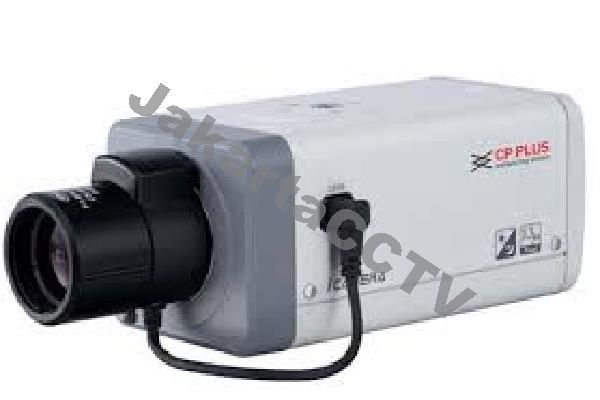

CP Plus CP-UNC-BP13CD

Rp 8.000.000

tidak termasuk pengiriman

1/3” 1.3Megapixel PS CMOS Image Sensor
H.264 & MJPEG dual-stream encoding
Max 25/30fps@1.3M & 25fps@720P
C/CS Mount Lens
Built-in 1/1 Alarm I/O
Micro SD memory, PoE
WDR, Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
Mobile Software: CMOB
CMS Software: IPSS

Qty:

Overview
Contact Us

Specifications
Image Sensor	1/3” 1.3 Megapixel CMOS
Minimum Illumination	0.1LUX/F1.2
Shutter Speed	Auto/Manual, 1/3~1/10000s
White Balance	Auto
AGC control	Auto/Manual
Back Light Comp.	Off/BLC/HLC/WDR(128dB)
S/N Ratio	more than 50 dB
Video Compression	H.264/MJPEG
Resolution	1.3M(1280×960) / 720P(1280×720) / D1(704×576) / CIF(352×288)
Video Output	1 channel BNC(1.0Vp-p, 75Ω)
Frame Rate	720P(1 ~ 25/30fps)
ICR	Auto(ICR) / Color / B/W
Lens	C/CS Mount Lens
Privacy Masking	Up to 4 areas
Interface	RJ-45 (10/100Base-T), 1 RS485
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF Ver. 2.0
Auto Iris	Yes
Operating Temperature	-10°C~+60°C, 10%~90%
Power Source	DC12V/AC24V, PoE(802.3af)
Power Consumption	<5W
Regulatory	CE, FCC and RoHS
Dimension	70mm×150mm×63.2mm
Weight	650g
Micro SD	Max 32GB
User Account	10 users
Alarm IN	1 Ch.
Alarm Out	1 Ch.
Audio Input	1 channel
Audio Output	1 channel
Audio Compression	G.711a / G.711u(64kbps)/PCM(128kbps)
Smart Phone	iPhone, iPad, Android, Windows Phone
