Brand: CP Plus

CP Plus CP-EAC-TY60L2-E

Rp 1.555.000

tidak termasuk pengiriman

• 1/3" Super HAD II
• 600 TVL High Resolution Camera
• 0 lux @ F1.2 (IR ON)
• 3.6 mm Fixed Lens
• IR Range of 20 Mtrs with 23 LED's
• AGC, AWB and BLC
• Weather Resistant IP 66 Housing
• CE, FCC and RoHS Certified

Qty:

Overview
Contact Us

Specifications
Image Sensor	1/3" Super HAD II
Pixels	PAL : 752Hx582V, NTCS : 768Hx494V
Resolution	600 TVL
Min. Illumination	0.1 lux @F1.2
S/N Ratio	more than 48db
Electronic Shutter	1/50(1/60)-1/100000s
Lens	3.6 mm
Gamma Correction	0.45
White Balance (AWB)	Auto
Gain Control (AGC)	Auto
Back Light Compensation	Auto
IR	23 LED, Upto 20M
Sync	Internal/External Line Lock
Video Output	1.0Vp-p/75 ohm
IP Rating	IP66
Power Supply	DC12V ± 5%
Power Consumption	<5W
Dimensions	205x81x85mm
Weight	430g
Operating Temperature	-20~50 °C
Certifications	CE, FCC, RoHs

Namamu *

Email Anda *

Pertanyaan *

Specifications
Image Sensor	1/3" Super HAD II
Pixels	PAL : 752Hx582V, NTCS : 768Hx494V
Resolution	600 TVL
Min. Illumination	0.1 lux @F1.2
S/N Ratio	more than 48db
Electronic Shutter	1/50(1/60)-1/100000s
Lens	3.6 mm
Gamma Correction	0.45
White Balance (AWB)	Auto
Gain Control (AGC)	Auto
Back Light Compensation	Auto
IR	23 LED, Upto 20M
Sync	Internal/External Line Lock
Video Output	1.0Vp-p/75 ohm
IP Rating	IP66
Power Supply	DC12V ± 5%
Power Consumption	<5W
Dimensions	205x81x85mm
Weight	430g
Operating Temperature	-20~50 °C
Certifications	CE, FCC, RoHs

Produk-produk terkait

CP Plus CP-GAC-DC65L2H1

Rp 750.000 tidak termasuk pengiriman

• 1/3" High Quality Image Sensor
• 650 TVL High Resolution Camera
• 0.1 lux @ F1.2
• 3.6 mm Fixed Lens
• IR Range of 20M with 24pcsφ5mm IR LEDs
• AGC, AWB and BLC
• CE, FCC and RoHS Certified

CP Plus CP-GAC-TC65L2

Rp 905.000 tidak termasuk pengiriman

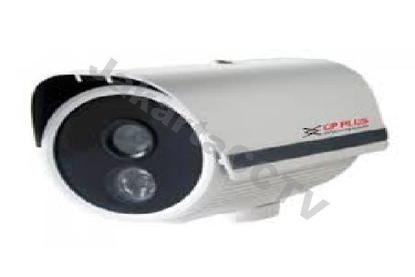

CP Plus CP-GAC-TC65L4

Rp 1.195.000 tidak termasuk pengiriman

• 1/3" High Quality Image Sensor
• 650 TVL High Resolution Camera
• 0.1 lux @ F1.2
• 6 mm Lens
• Array Range of 40M
• AGC, AWB and BLC
• CE, FCC and RoHS Certified

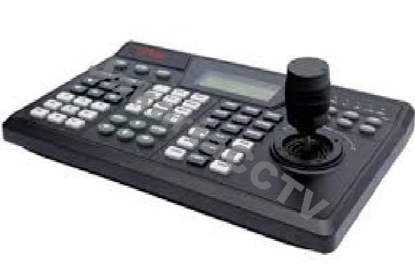

CP Plus CP-KB31-H
